4. Pull the 16-Position Select and the On/Off/Volume Control knobs off their shafts
using the Chassis Opener tool.
5. After you remove the On/Off/Volume Control knob, remove the Teflon
® washer
and set it aside.
6. Separate the chassis from the front cover by inserting the chassis opener between the
thin, plastic retaining wall and the metal chassis at the bottom of the radio.

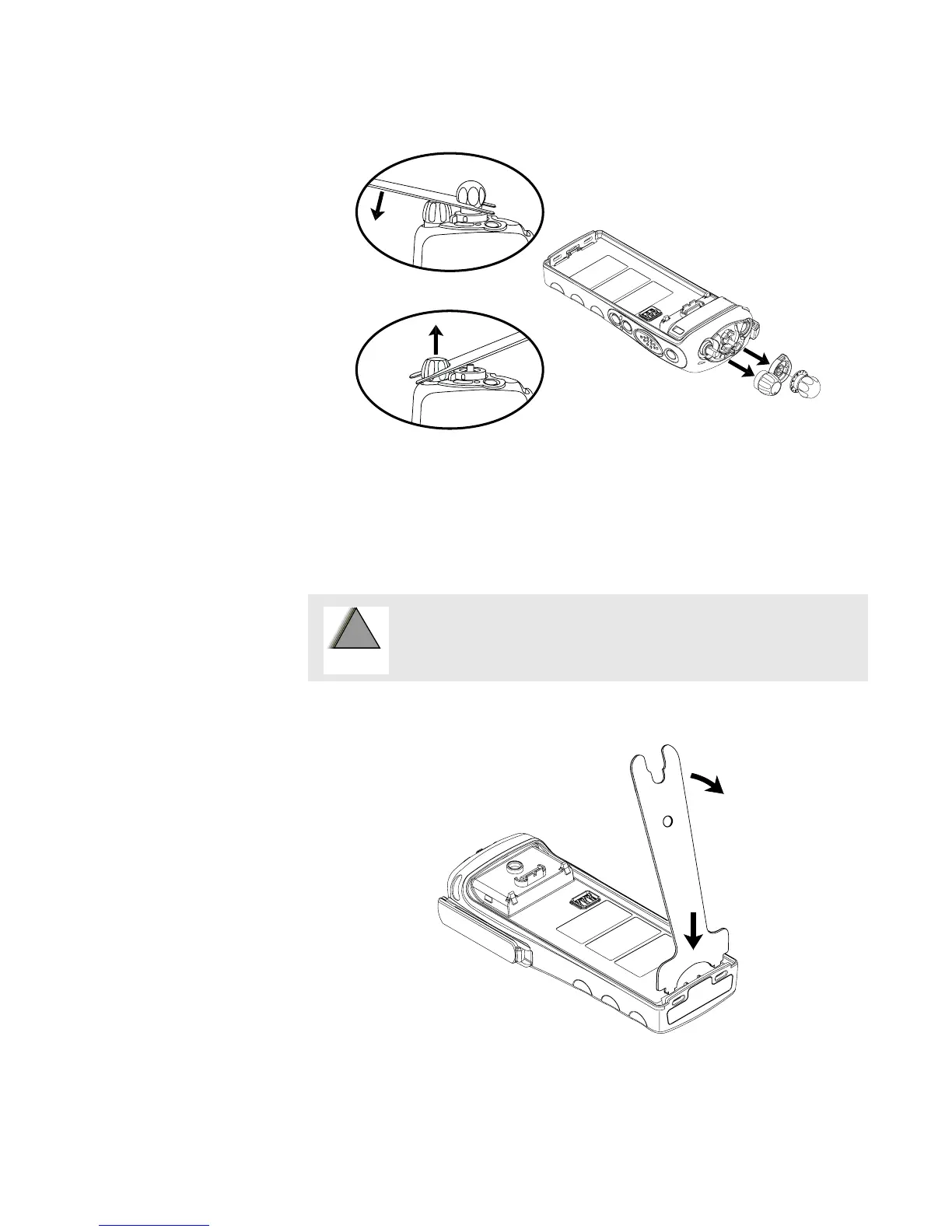

Figure 28. Knob Removal
Be careful not to mar the O-ring sealing area on the housing. Marring
the front cover O-ring sealing areas will prevent the radio from
sealing properly.
Figure 29. Chassis Removal
!
W A R N I N G
!
KNOBS OPENER
CHASSIS OPENER
