12 Appendix
1135831400/02 EN
12.5 Vibration-damping plate/Mounting plate

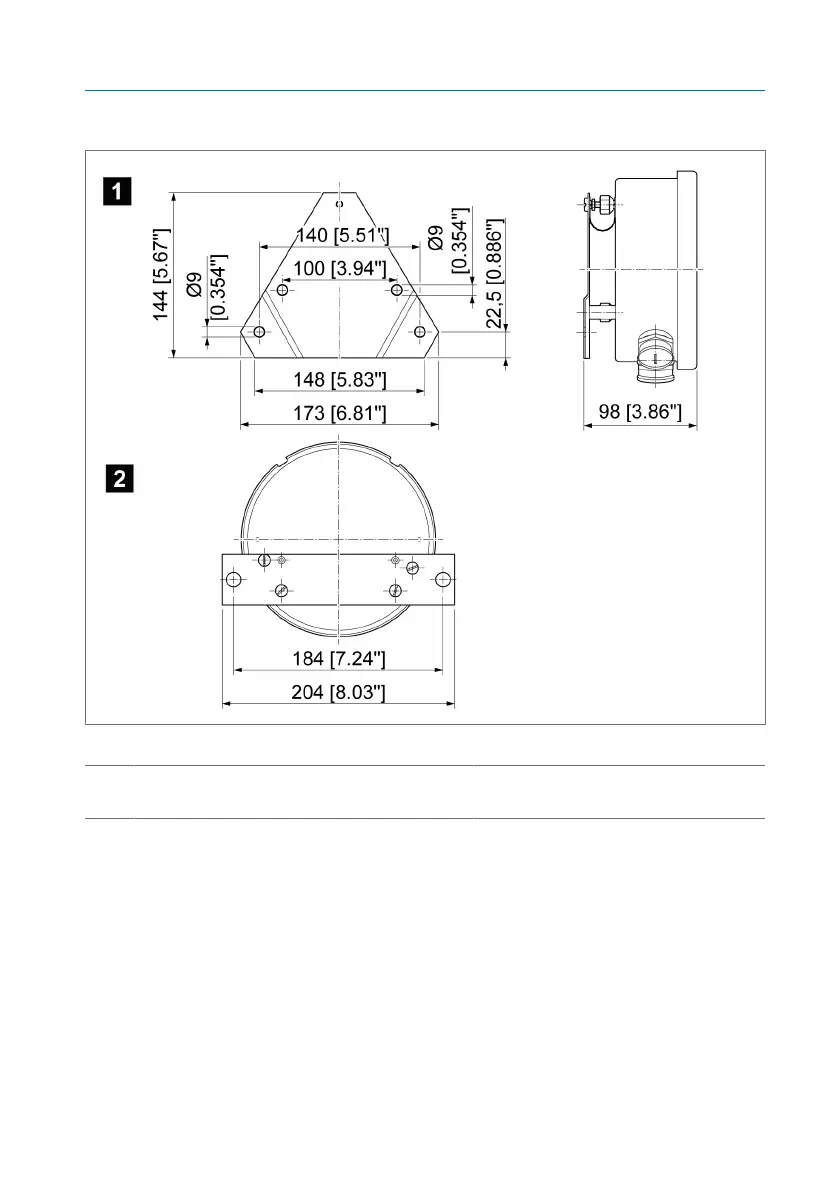

Figure81: Dimensional drawing for vibration-damping plate and mounting plate
1 Vibration-damping plate (Compact
standard)
2 Mounting plate (Compact RM)
