MR MESSKO COMPACT - Connecting the Protective Conductor

6 Installation and commissioning
595831400/02 EN
6.4.5 Connecting the protective conductor
DANGER
Electric shock
Risk of fatal injury due to lack of protective conductor connec-
tion.
► Always connect the protective conductor connection before connecting
any potentially dangerous circuits.
6.4.5.1 Connecting the protective conductor for oil temperature
indicator without plug and without interface
This section only applies for the basic MT-ST160SK Standard version with-
out the RM option and without interface (not for type TT or type TTM).
To connect the protective conductor to the pointer thermometer, proceed as
follows:
► Equip the protective conductor (PE) with a forked cable shoe or ferrule
and secure it to the protective conductor screw of the pointer thermome-
ter.

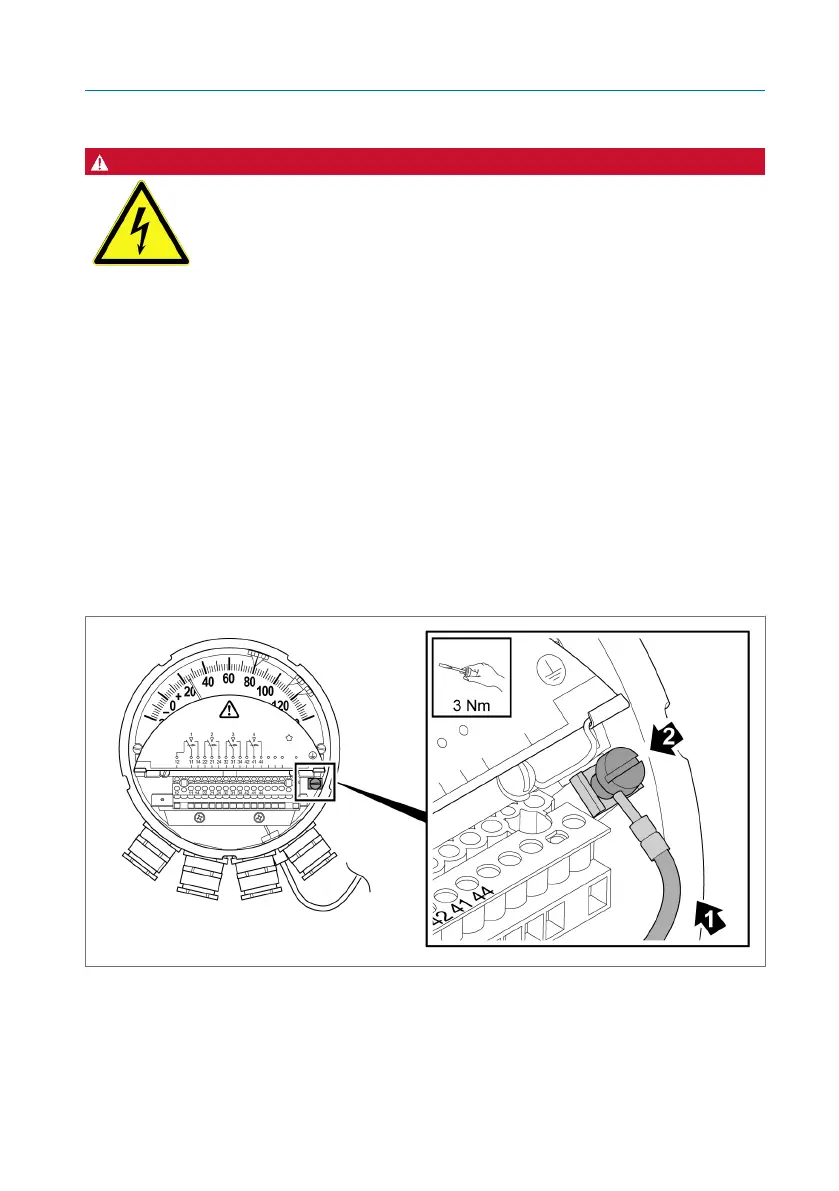

Figure42: Connecting the protective conductor to the pointer thermometer
