6 Installation and commissioning

415831400/02 EN

6.3.5 Attaching the step protection (optional)

You can equip the capillary line for No.6 VA and No.7 sensors [►Section

12.3, Page 111] with step protection.

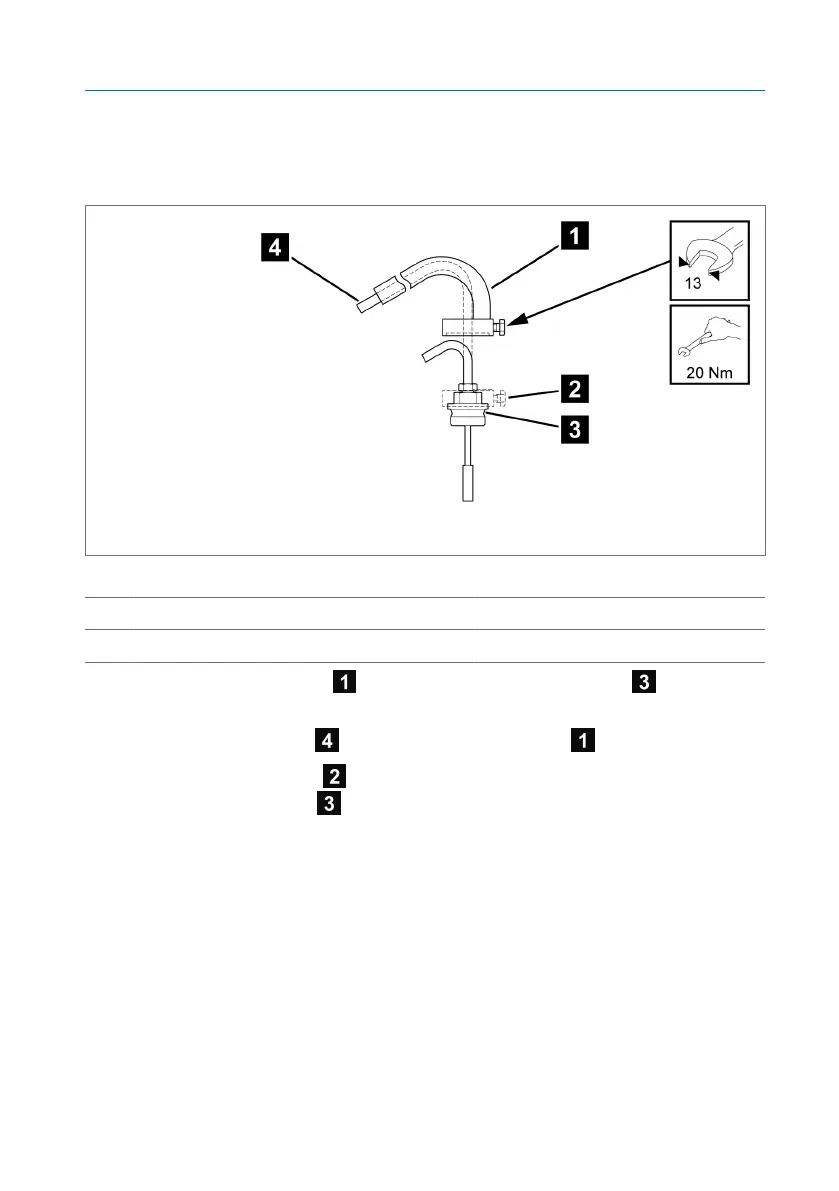

Figure21: Step protection

1 Step protection 2 Fixing screw

3 Large screw connection 4 Capillary line

1. Place the step protection on the large screw connection of the tem-

perature sensor.

2. Route the capillary line inside the step protection .

3. Tighten the fixing screw of the step protection to the wrench flat of the

large screw connection .
