MR MESSKO COMPACT User Manual

6 Installation and commissioning
76 5831400/02 EN

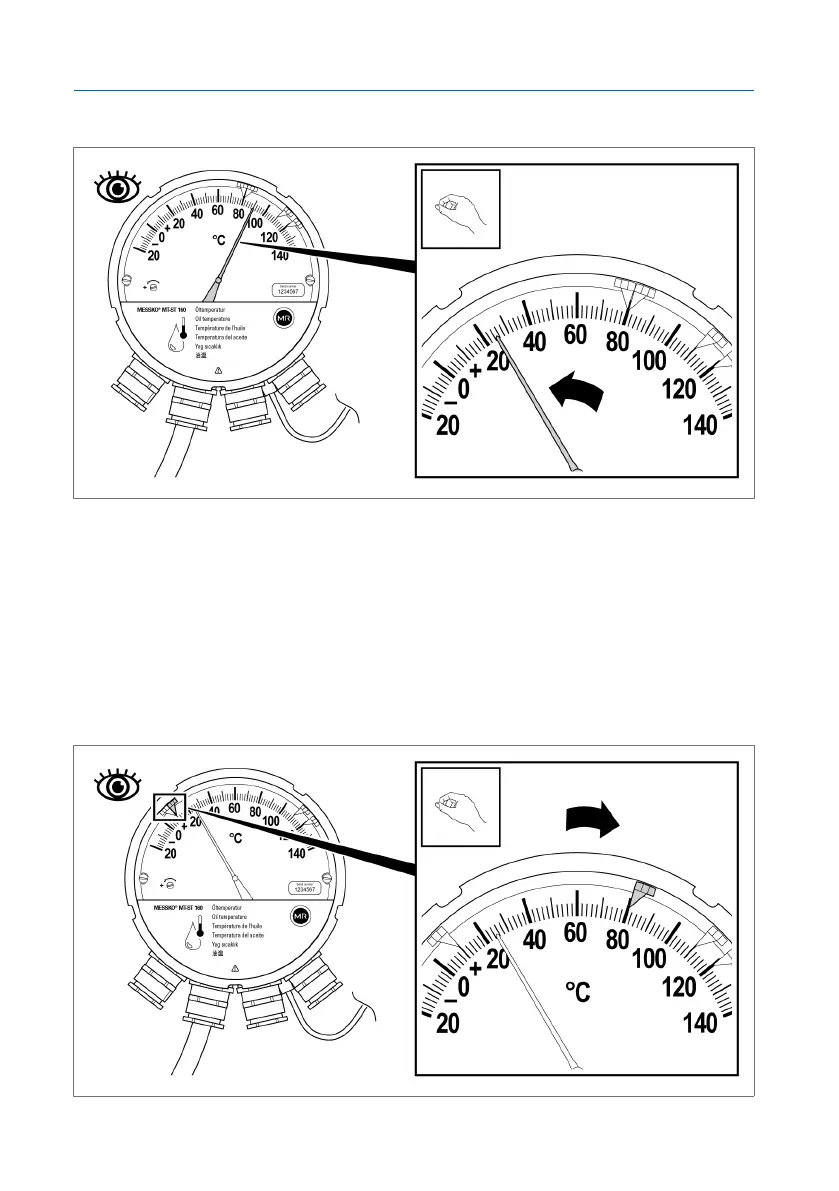

2. Slowly return the pointer to its starting position.
Figure58: Returning the micro-switches
ð A return spring pulls the pointer back to its exact starting position.
6.5.2 Micro-switch to the left of the pointer
If the micro-switch is to the left of the pointer, proceed as follows:
1. Move the micro-switches clockwise past the pointer individually and in
succession and check the function. If necessary, connect a continuity
tester to the terminal strip to do so.
Figure59: Moving the micro-switches past the pointer
