4.3 Design

4.3.1 Compact Standard overview

Depending on your order, the pointer thermometer features cable glands or

NPT adapters.

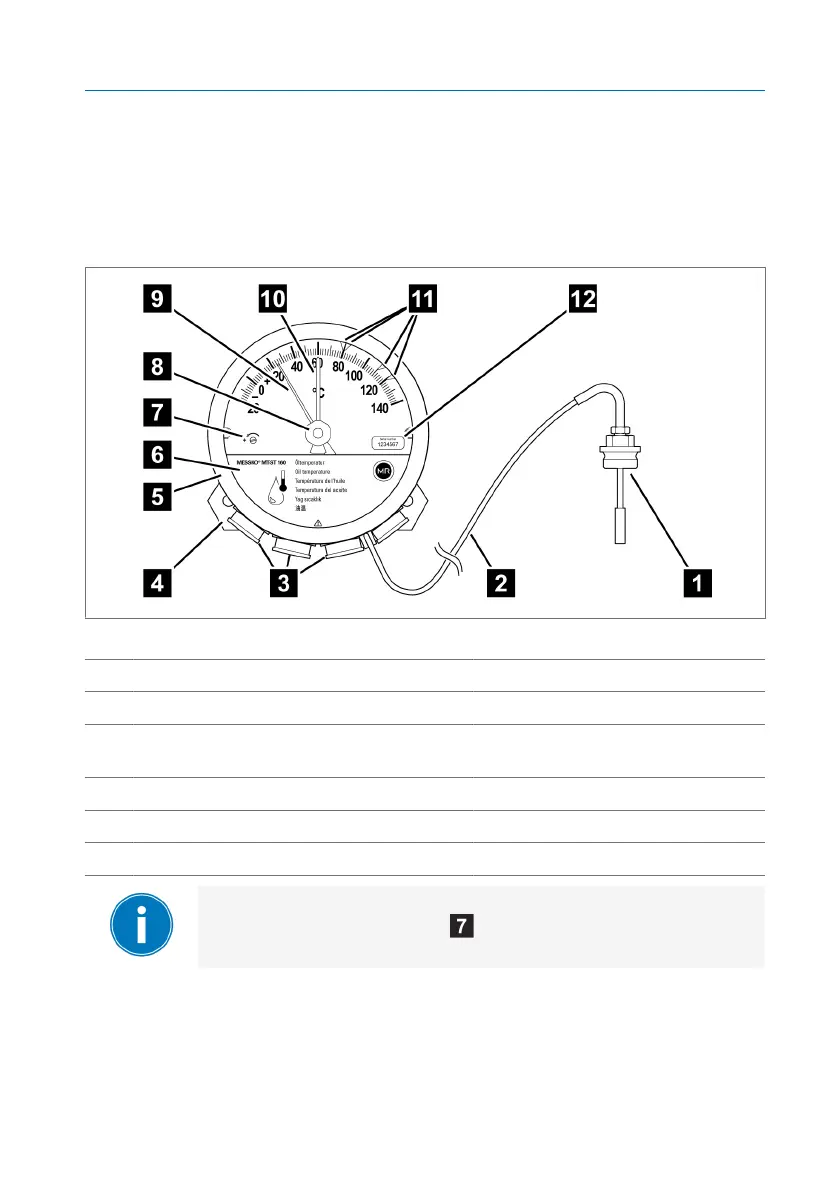

Figure2: Pointer thermometer

1 Temperature sensor 2 Capillary line

3 Cable glands/adapters 4 Vibration-damping plate

5 Bayonet seal ring, glass pane and

gasket

6 Cover plate

7 Calibration screw 8 Drag hand reset

9 Pointer 10 Drag hands

11 Adjustable micro-switches 12 Label with serial number

The pointer thermometer is calibrated at the factory. Do not

adjust the calibration screw , or else the device's warranty

will be voided!
