MR MESSKO COMPACT - Mounting the Pointer Thermometer

6 Installation and commissioning
335831400/02 EN
1. Immerse the temperature sensor of the pointer thermometer and a cali-
brated glass thermometer in the liquid bath for approx. 15minutes.
2. Compare the measured temperature values of the pointer thermometer
and glass thermometer with each other.
ð If the measured temperature values deviate from each other significantly
(maximum permitted deviation ±3°C), contact the service department of
Maschinenfabrik Reinhausen GmbH [►Section 2.3, Page 14].
6.3 Mounting the pointer thermometer
6.3.1 Attaching the pointer thermometer to the transformer
When attaching the thermometer to the transformer, note the following infor-
mation:
▪ Ensure that the pointer thermometer is mounted vertically.

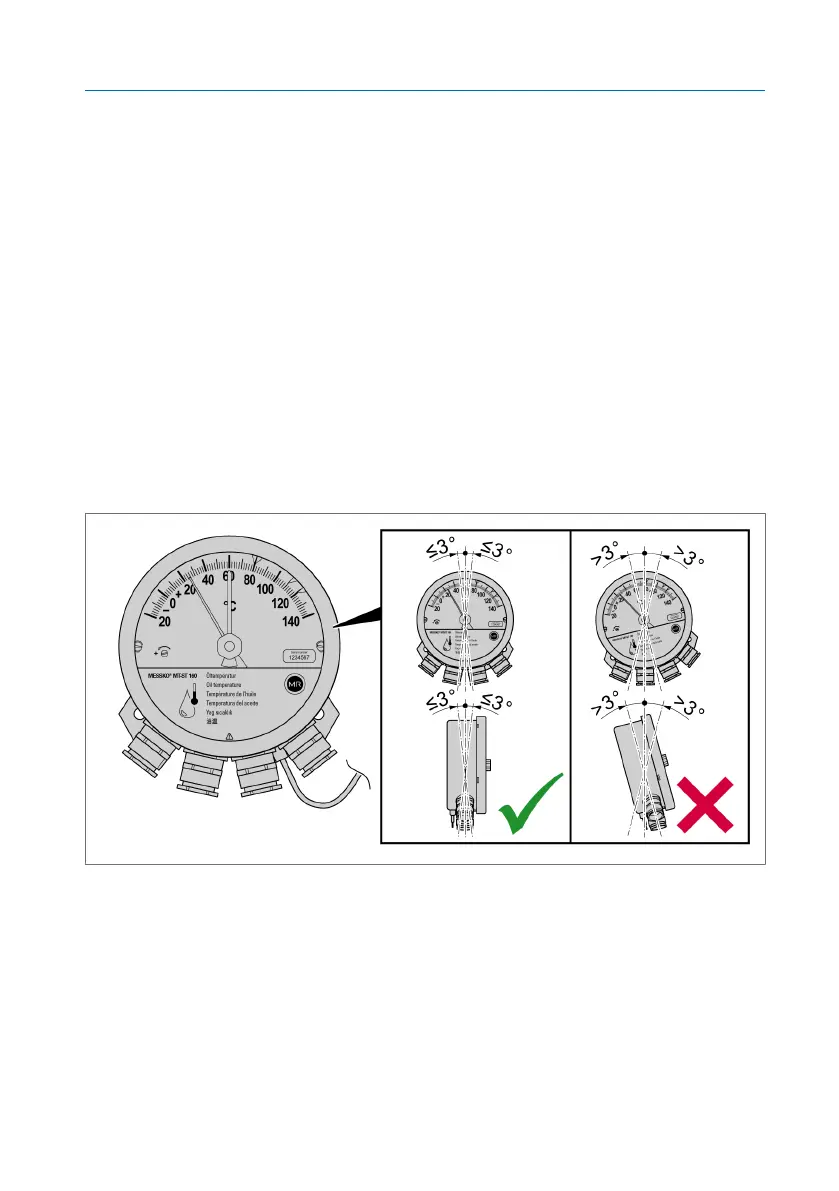

Figure11: Mounting position
▪ Ensure that the pointer thermometer is not subjected to any vibrations at
the installation location.
▪ Comply with EMC standards [►Section 6.4.1.1, Page 43].
▪ Observe the dimensions in the chapter Technical data [►Section 11,
Page 101].
