6 Installation and commissioning

34 5831400/02 EN

6.3.1.1 Attaching the Compact Standard pointer thermometer

You can use the following screws to attach the pointer thermometer:

▪ M8 hexagon screws or cylinder screws.

▪ Use a screw length that is appropriate based on the installation situation.

To attach the pointer thermometer to the transformer, proceed as follows:

1. Drill two holes, with a distance of 140mm (5.51") and a diameter of 9mm

(0.35"), into a suitable bracket on the outside of the transformer, on the

control cabinet mounting plate or on another suitable structure.

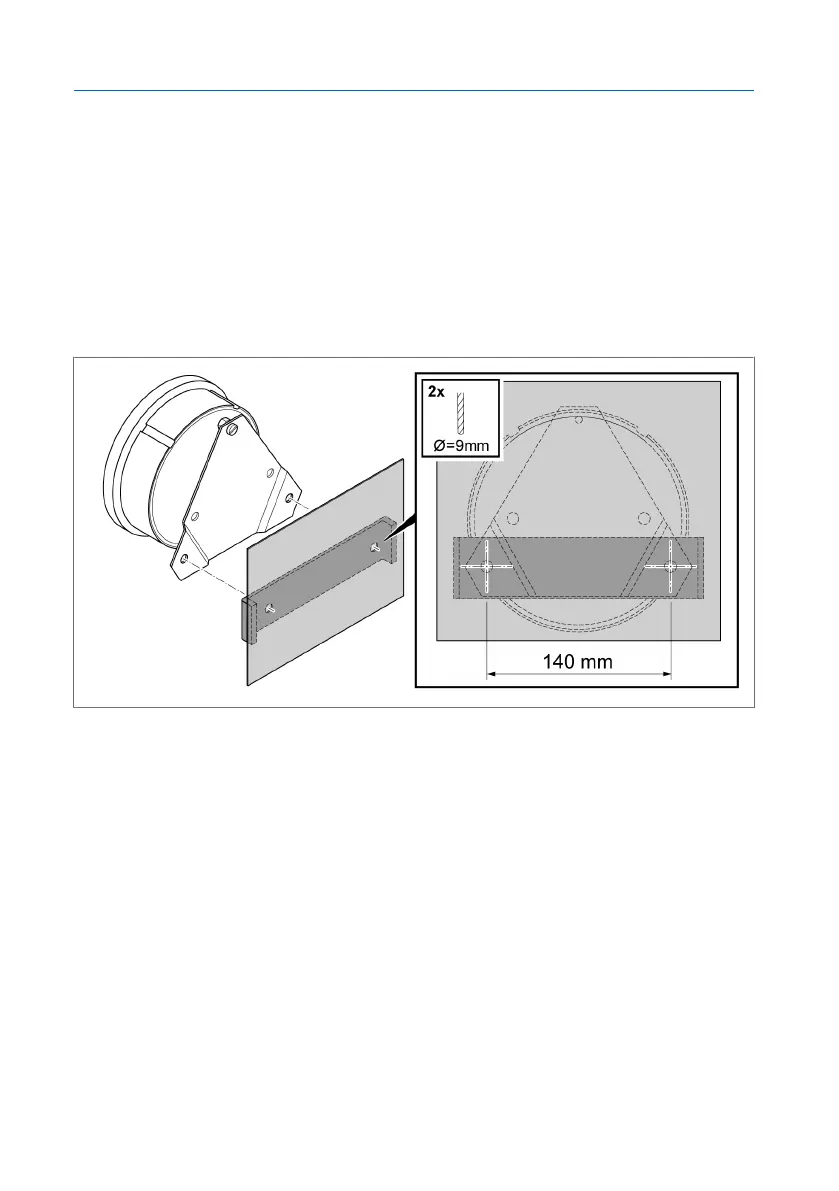

Figure12: Holes
