12 Appendix
114
5831400/02 EN

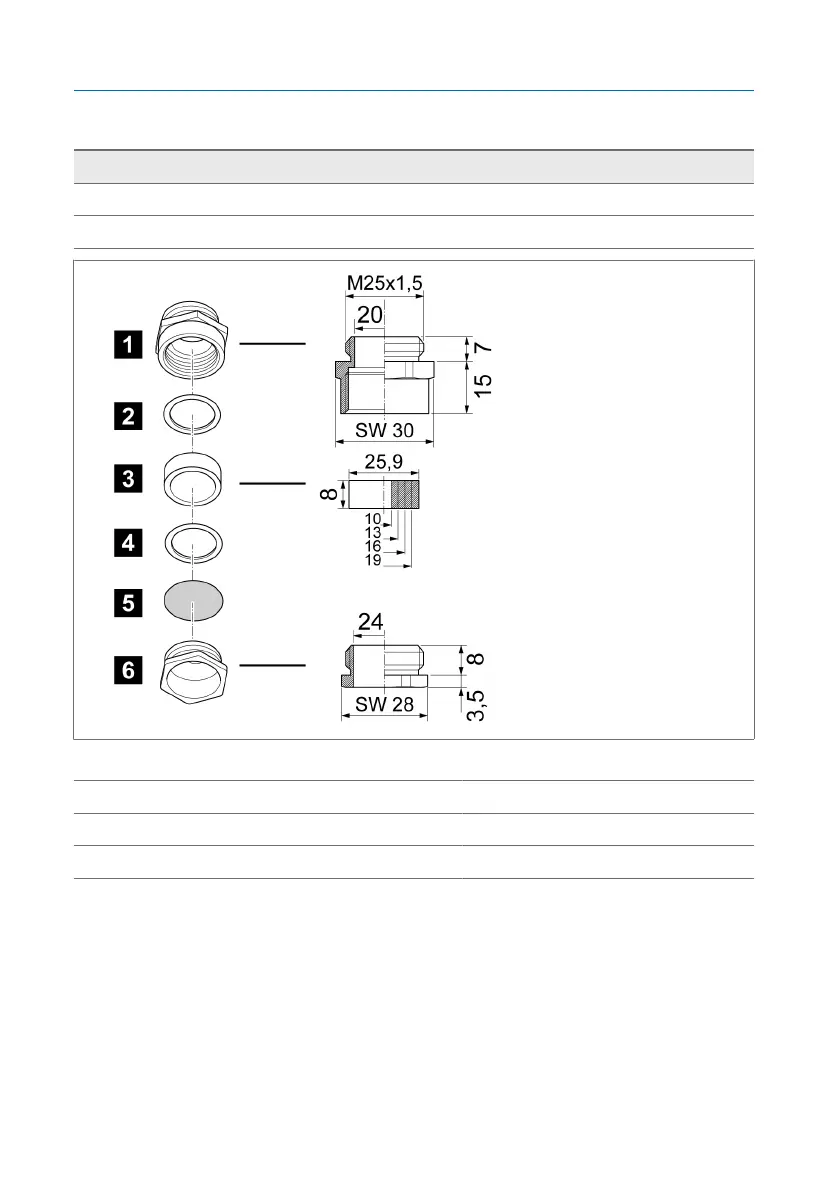

12.6 Cable gland dimensions
Standard cable gland
M25x1.5 nickel-plated brass
Clamping range 9...20mm
Figure82: Standard cable gland
1
Gland base
2
Pressure ring
3
Universal sealing ring, NBR
4
Pressure ring
5
Dust protection disk
6
Pressure screw
