MR MESSKO COMPACT - Positioning the Bayonet Seal Ring

6 Installation and commissioning
915831400/02 EN
6.10 Positioning the bayonet seal ring
ü Ensure that the drag hand is positioned to the right of the pointer.

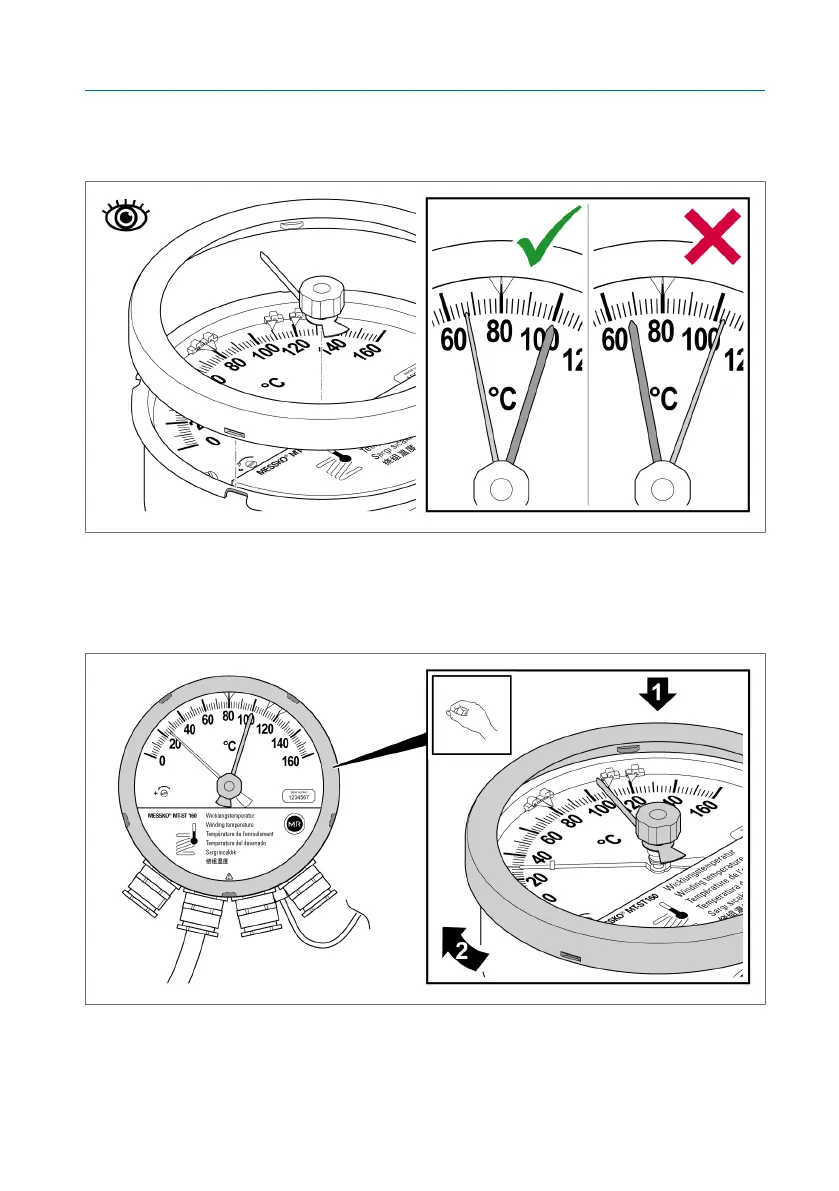

Figure71: Position of the drag hand
► Reposition the bayonet seal ring with viewing glass on the pointer ther-
mometer, press down firmly and turn 30...40° clockwise so that the view-
ing glass is pressed firmly into the rubber gasket all the way around.
Figure72: Positioning the bayonet seal ring
ð The pointer thermometer is ready for operation.
