4 Product description

18 5831400/02 EN

Depending on the device version, you can use the following interfaces for

transmitting measured values:

▪ Type TT: Passive 4...20mA analog output

▪ Type TTM (24VDC power supply necessary):

– Active 4...20mA analog output

– RS485 interface for Modbus RTU

In addition, the contacts of the micro-switches switch when threshold values

are exceeded.

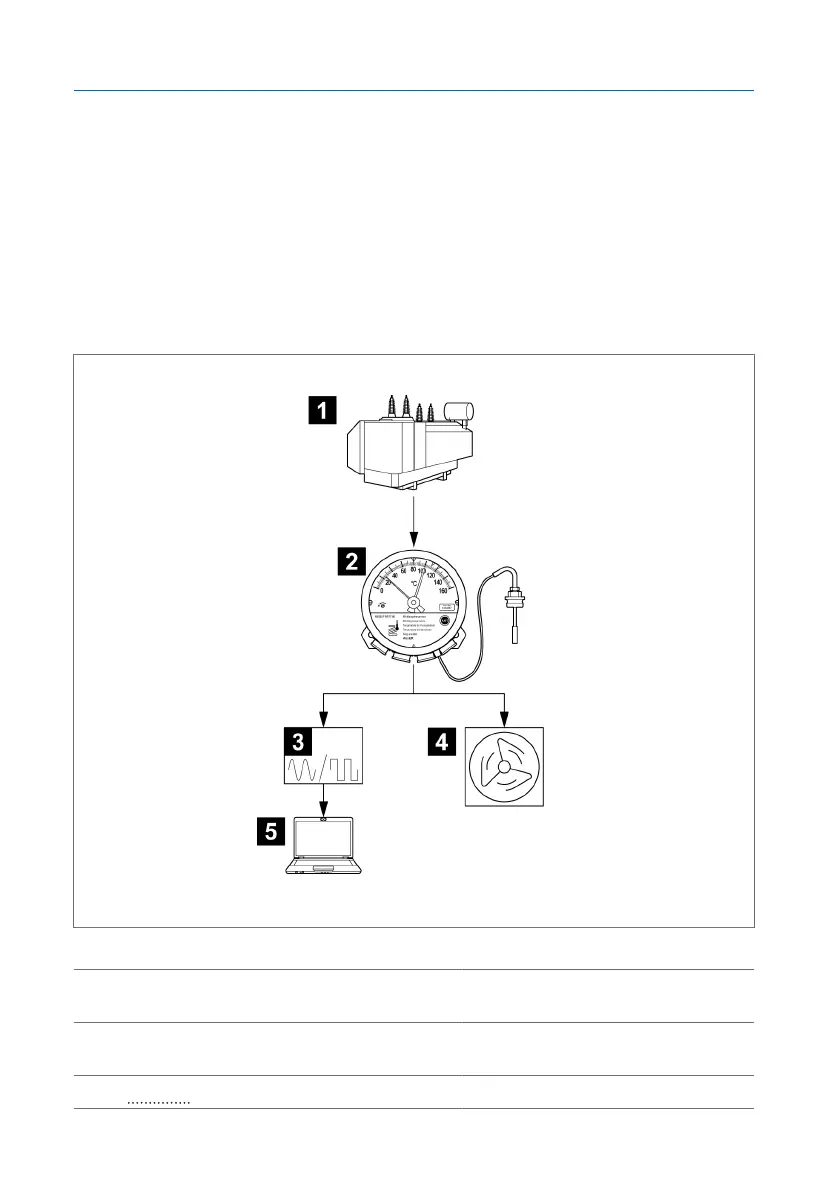

Figure1: Example temperature measurement and temperature display

1 Transformer 2 Pointer thermometer for winding

temperature (or oil temperature)

3 Digital display / analog display 4 Transformer cooling system con-

trol

5 SCADA
