6 Installation and commissioning
58 5831400/02 EN
6.4.4.6 3/4" 14NPT adapter
1. Remove the locking cap.

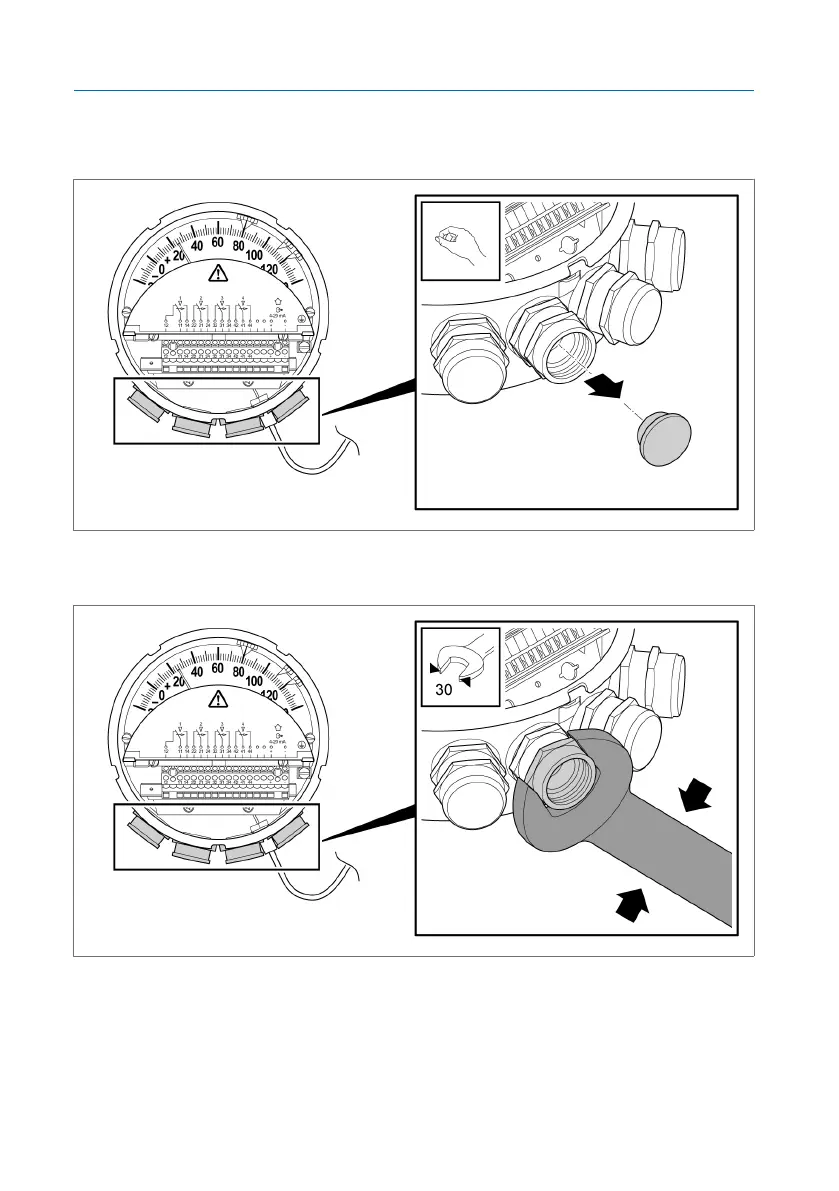

Figure40: Removing the locking cap
2. Hold the adapter with an open-end wrench.
Figure41: Holding the adapter
3. Screw a cable conduit or cable tube with 3/4″ 14NPT external thread into
the adapter correctly and tightly. Feed through a sufficient length of cable.
Also refer to
2 Connecting cable glands/NPT adapters [►74]
