Unitronic RobustC (TP) 3x2x0.5 from Lapp
▪ Shielded; 3xtwisted pair (TP); 0.5mm
2
– 1 TP used for 24VDC
– 1 TP used for Modbus A and B
– 1 TP used for Modbus_Common_GND
▪ External diameter 8.7mm
Also refer to
2 Connecting cable glands/NPT adapters [►74]
6.4.4.5 1/2" 14NPT adapter
1. Remove the locking cap.

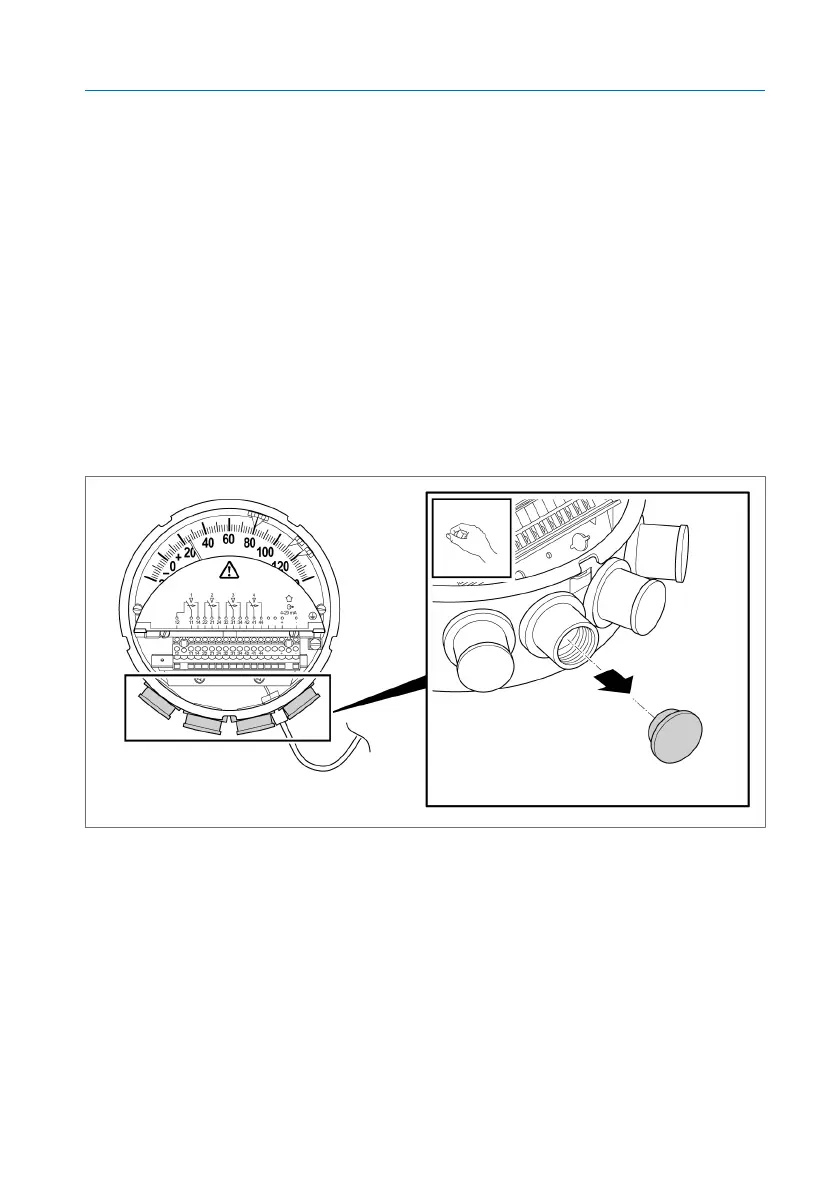

Figure39: Removing the locking cap
2. Screw a cable conduit or cable tube with 1/2″ 14NPT external thread into
the adapter correctly and tightly. Feed through a sufficient length of cable.
Also refer to
2 Connecting cable glands/NPT adapters [►74]
