6 Installation and commissioning
50 5831400/02 EN
6.4.4.1 Standard cable gland
1. Remove the locking screw on the adapter.

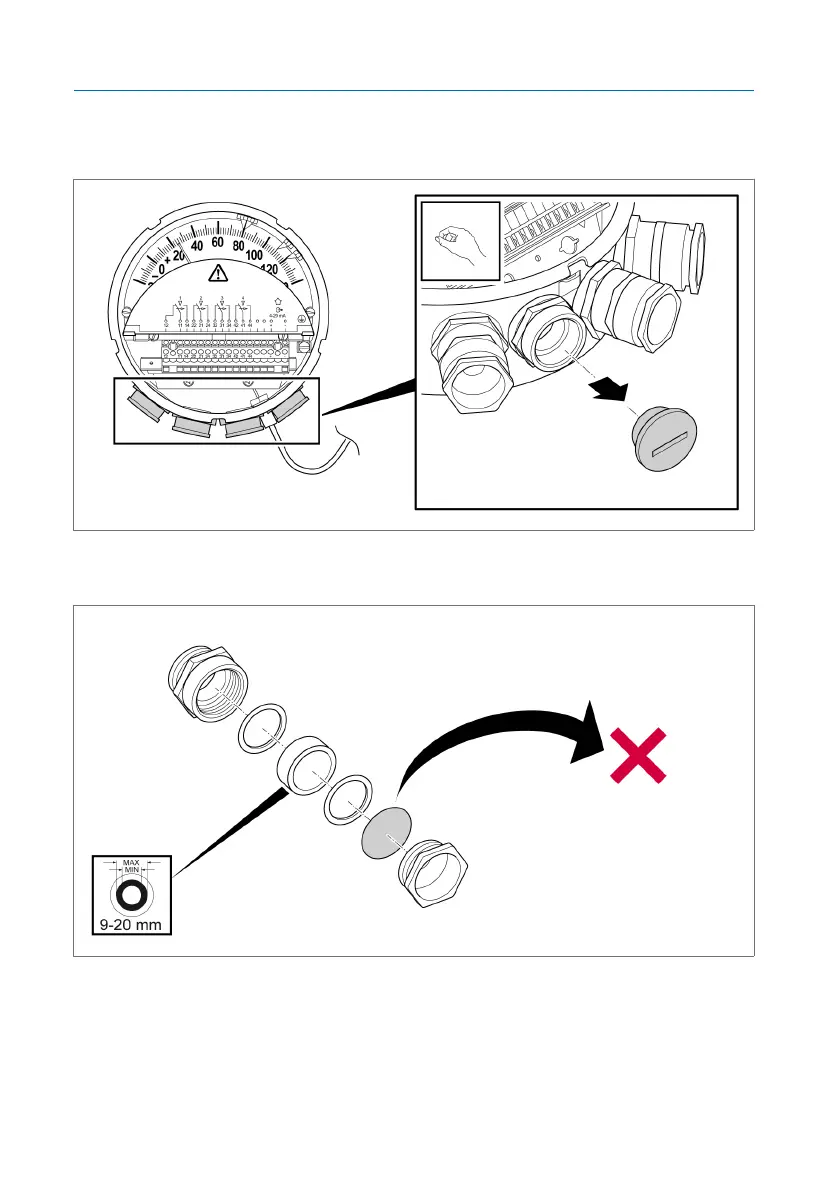

Figure26: Removing the locking screw
2. Unscrew the provided cable gland and remove the dust protection disk.
Figure27: Removing the dust protection disk
