6 Installation and commissioning
61
5831400/02 EN
For pointer thermometer versions with plug, the protective conductor con-
nection must be established as follows:
►
Connect the pointer thermometer to the grounding point of the trans-
former using the protective conductor cable via the PE connecting bolt
attached to the housing. Check the electrical contact of the protective
conductor connection.

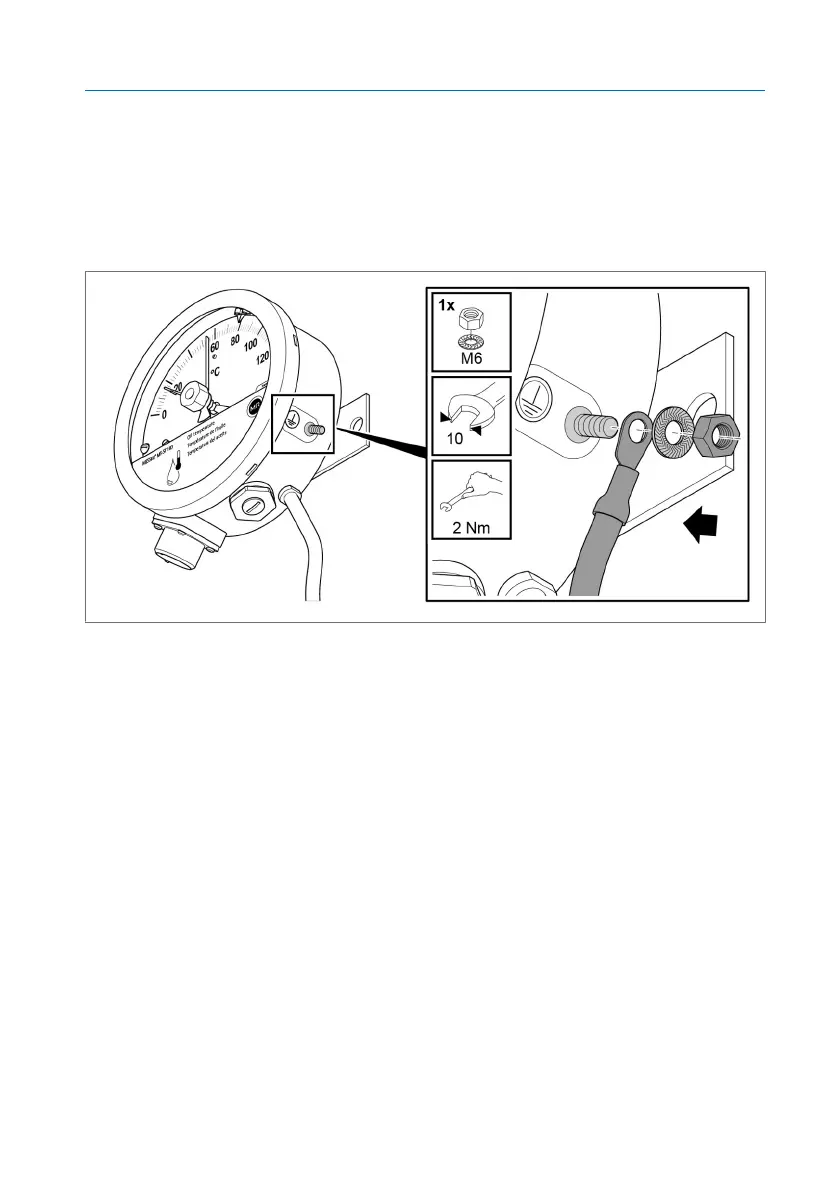

Figure44: Connecting the protective conductor to the pointer thermometer
60
62
