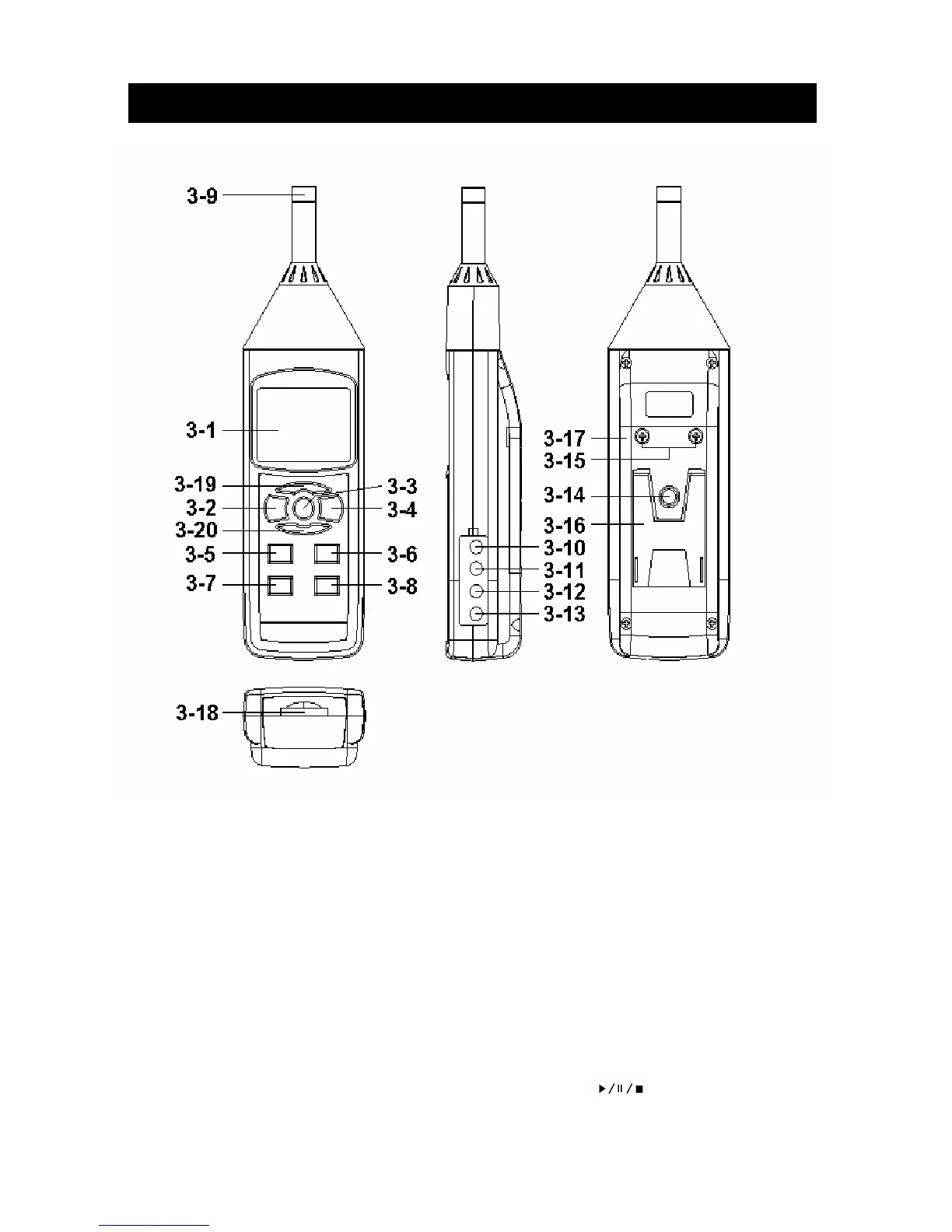

3. FRONT PANEL DESCRIPTION

Fig. 1

3-1 Display. 3-11 Calibration VR

3-2 Power Button ( ESC, Backlight Button 3-12 RS-232 output terminal

3-3 Hold Button 3-13 DC 9V adapter socket.

3-4 REC Button 3-14 Tripod Fix Nut

3-5 Range Button ( ▲ Button )

3-15 Battery Cover Screws

3-6 Fast/Slow Button/ Peak ( ▼ Button )

3-16 Stand

3-6 SET Button ( Time Button ) 3-17 Battery compartment/Cover

3-8 ENTER Button ( Logger Button ) 3-18 SD card socket

3-9 Microphone 3-19 Button

3-10 AC output terminal 3-20 Integ Time Button
