MS Topcoater - Cleaning Intake System (620101) - Parts List

1 Housing, Top 426655
2 Housing, Bottom 426656
3 Push to Connect Elbow Plug-In 10mm to 8mm 415742
4 Piston 426657
5 O-Ring,19.5x3.0,FKM 411342
6 O-Ring,20.35x1.78mm 445140
7 Push to Connect Fitting Male Elbow 10mm Tube Male 1/8” BPST 423450
8 Spring 450198
9 Metric18-8StainlessSteelSocketHeadScrewsM5x0.8mm 445111
10 Lock Washer for M5 Screw 425330
11 M6x60SocketCapHexScrew 439197
12 O-Ring,19x2.5mm 434202
Item #
CLEANING INTAKE SYSTEM (620101) - PARTS LIST
Part #Description
10
8
10
2
7
12
6

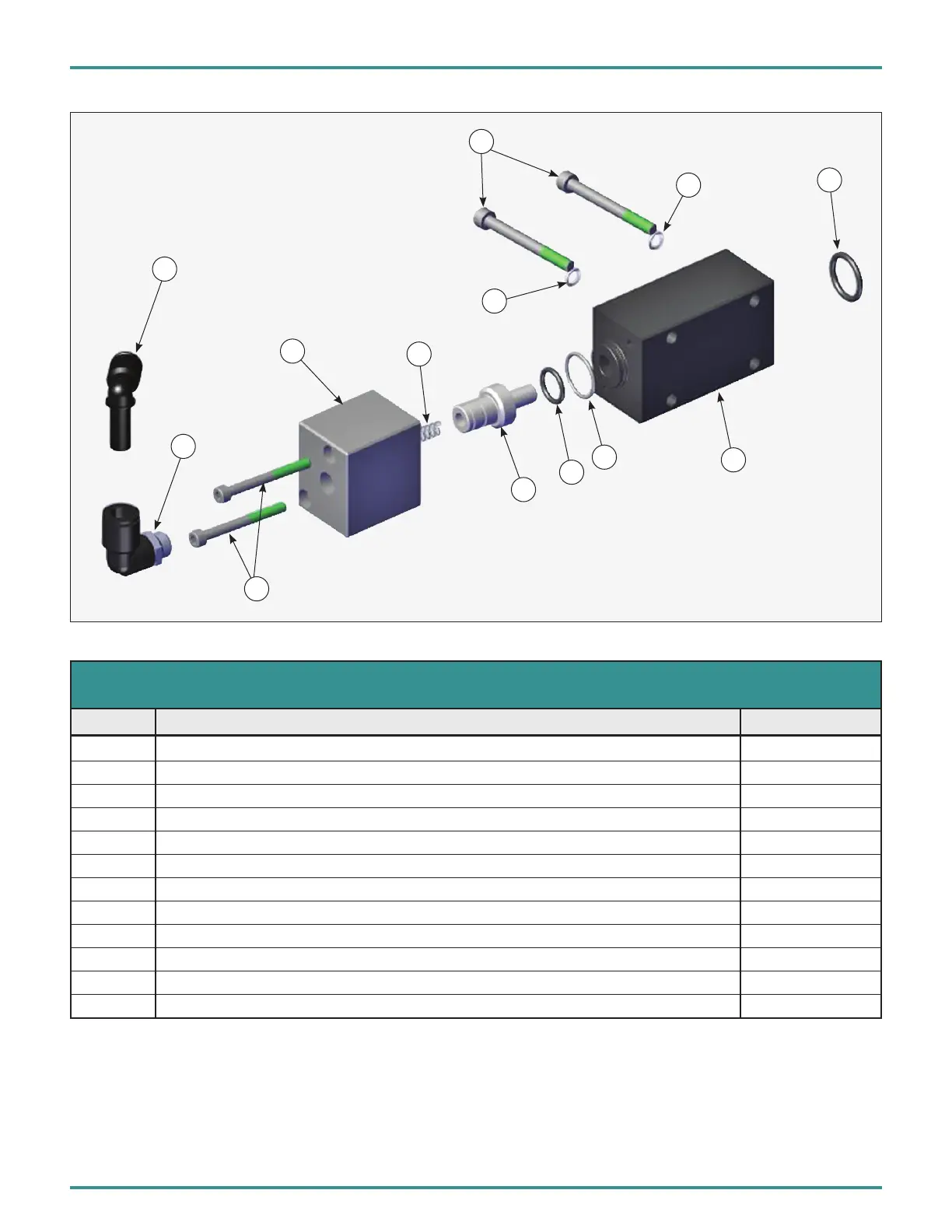

Cleaning Intake System - 620101
5
9
11
1
4
3
