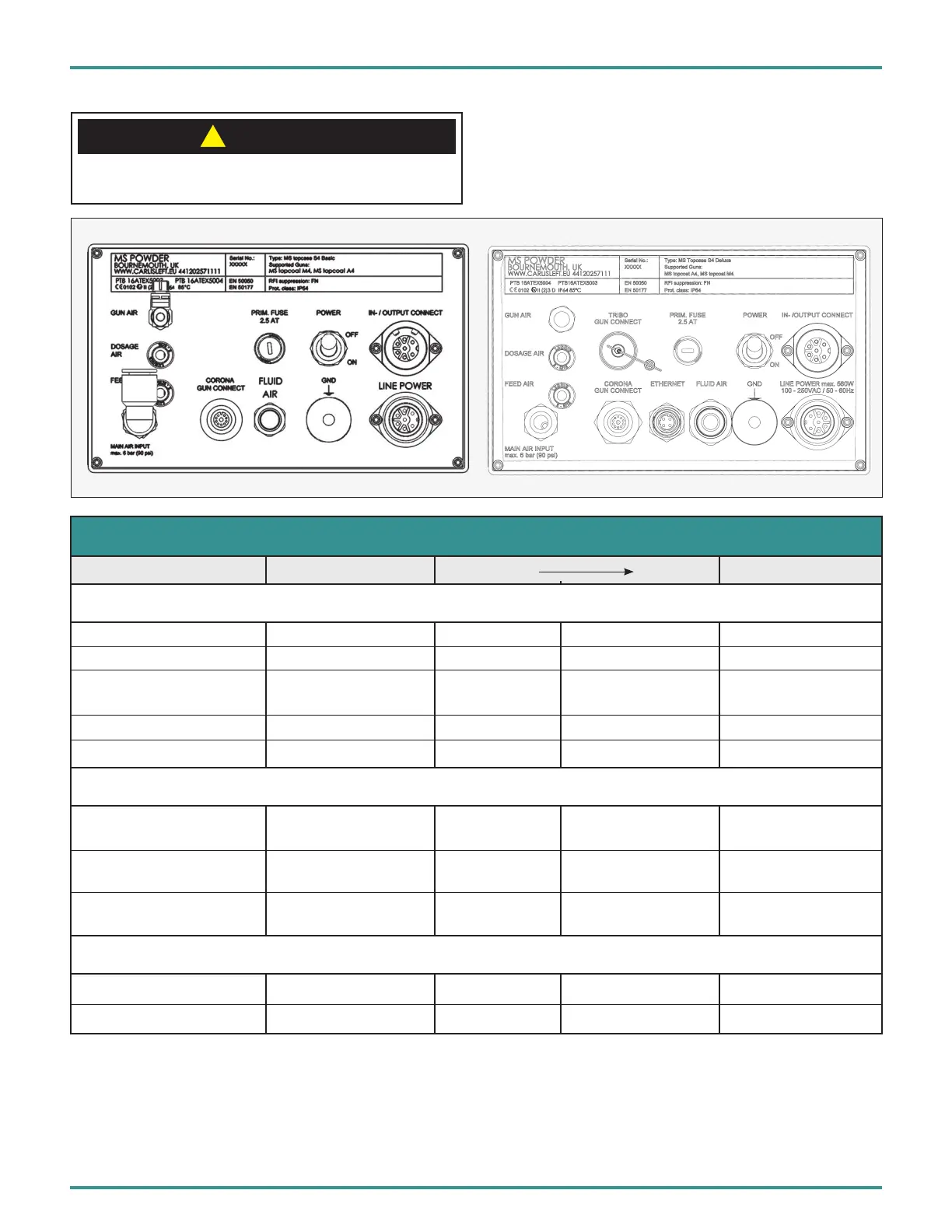

Connector Name
CONNECTING HARDWARE
To
Notice
From
Control Module Connecting
Connect ground cable GND (Yellow/Green) Controller
True Earth Ground
Safety regulations
Main cable Line Power Main Supply Controller Safety regulations
Main air Main Air Input Main air Controller 6-8 bar Free from
Oil and water
Connect control signals
In/Output Connect Controller Vibrator Motor Safety regulations
Fuse Prim. Fuse
2.5A (Pre Installed)
Connect Manual Gun
Manual powder gun Corona Manual Controller
Cable, Corona Gun Connect Powder Gun
Manual powder gun Tribo Manual Controller
Cable, Tribo Gun Connect powder gun
Gun air hose Gun Air Manual Controller
(black) powder gun
Connect Powder Injector
Air hose feed air Feed Air (blue) Controller Powder injector
Air hose dosage air Dosage Air (red) Controller Powder injector
Connect What
CAUTION
!
These units must be located outside the hazardous
area (zone 22, class 1 division 2)
