Additional Information
FS-B35XX Series Start-up Guide 23
7 Additional Information

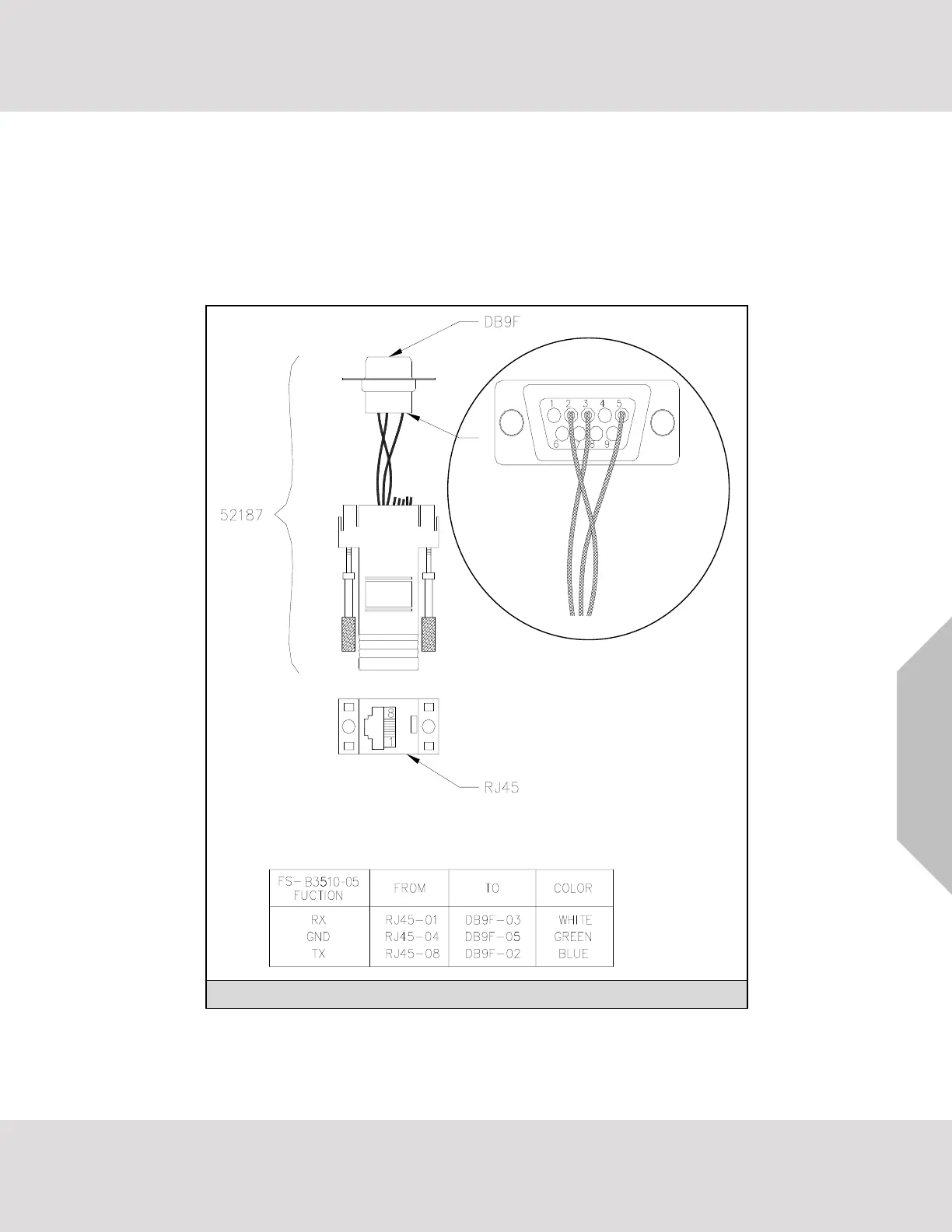

7.1 Supplied Connector Kit (FS-8915-11)
The following connector is supplied to facilitate RS-232 communications on the RJ-45 RS-232 port. The
table in the diagram shows the functions applied to each of the RJ-45 pins by the FieldServer to assist in
determination of the required pinout configuration for connection to the third party device.
NOTE: FS-B35XX Series RS-232 numbering convention is reverse to the 10BaseT numbering.
