Equipment Setup
FS-B35XX Series Start-up Guide 8
2.3 Physical Dimensions
2.4 Wiring
The power socket is a “screw terminal” type. It is recommended to use of the power supply sent with the
unit. If an alternative power supply is desired, select an external power supply that has been certified for
safety for the correct destination country and an output rating that is considered acceptable. Refer to
Section 7.2 for detailed specifications.
NOTE: USE COPPER CONDUCTORS ONLY.

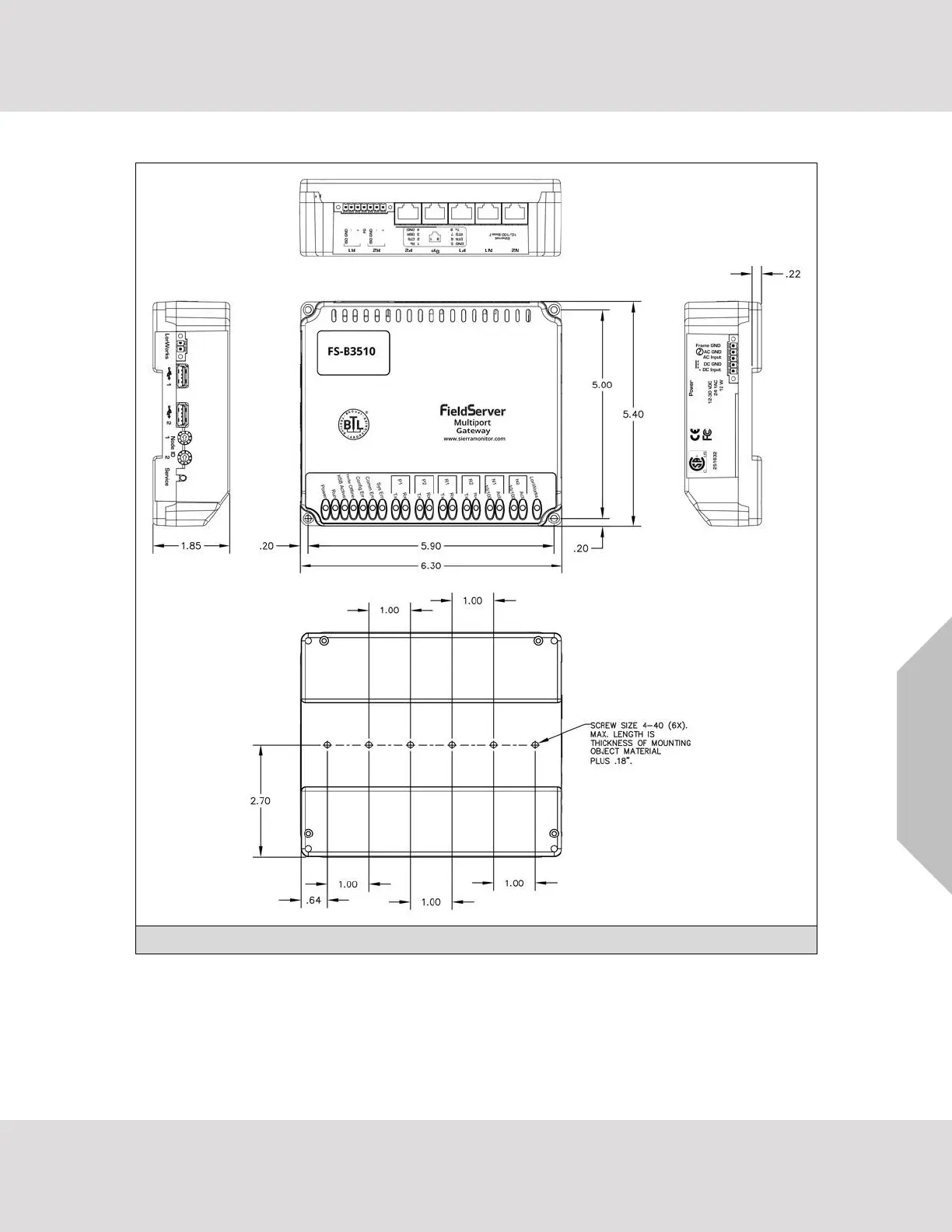

Figure 2: FieldServer FS-B35XX Series Showing Dimensions
