AppendixMSA

PrimaX

10.5 Mechanical Installation

Dimensions

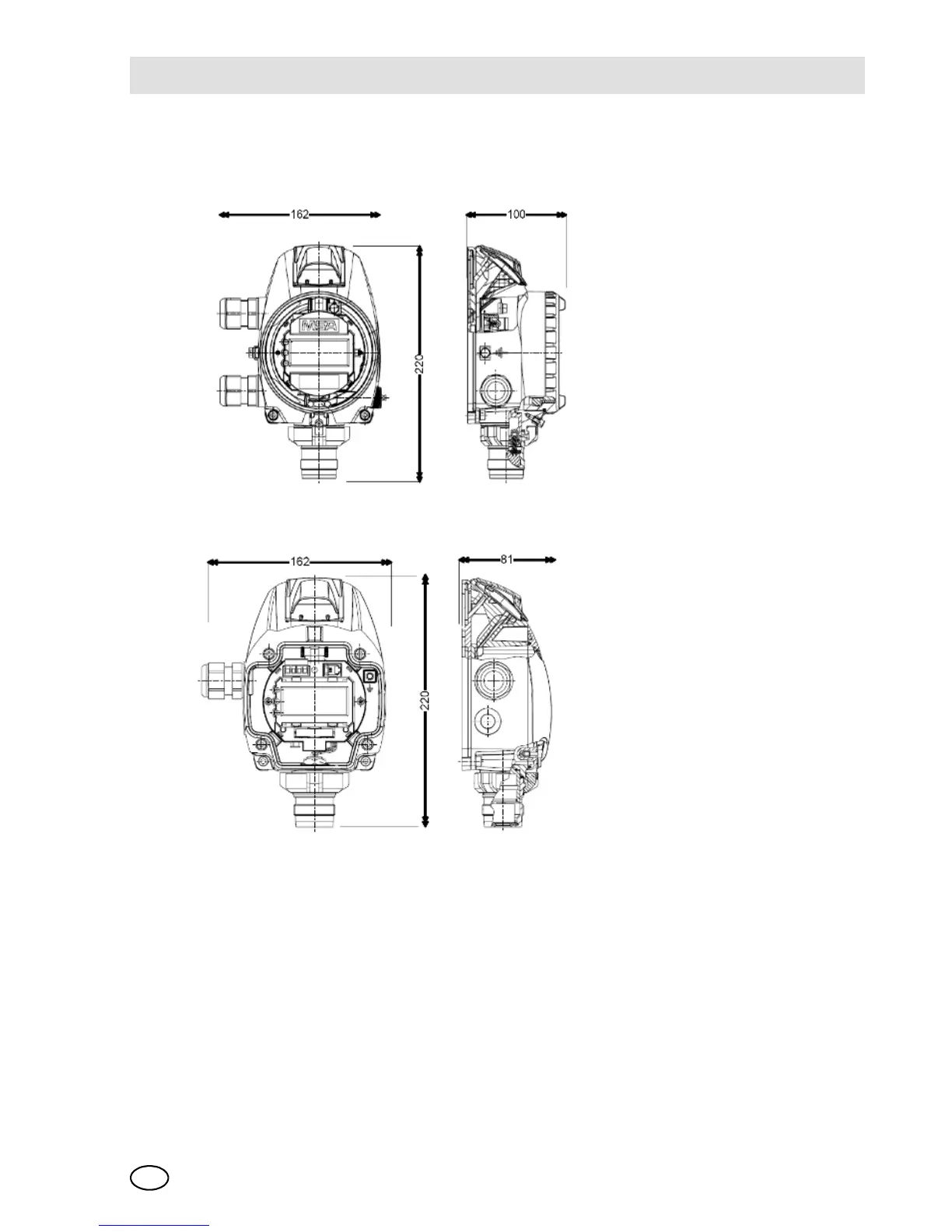

Fig. 25 Outline dimensions Prima X P

Fig. 26 Outline dimensions Prima X I

Cable gland

- M25 x 1,5;Torque 8 -12 Nm; only ATEX certified versions for gas and dust shall

be used.

- NPT ¾"- 14; fixture with 2 layer PTFE sealing tape or according to the instruc-

tions of the NPT supplier; when removed, new PTFE sealing has to be used af-

ter reinstalling; only ATEX certified versions for gas and dust shall be used.
