Installation
3.3.7 XP Remote Sensor 2" (50.8 mm) Pipe Mount
The integrated mounting tabs on the remote sensor housing can be mounted to a 2" (50,8 mm)
pipe using a standard U-bolt. MSA provides U-bolts as an optional accessory (Part Number
10179873), however any 2” (50.8 mm) pipe U-bolt rated for the weight and dimensions of the
housing can be used.

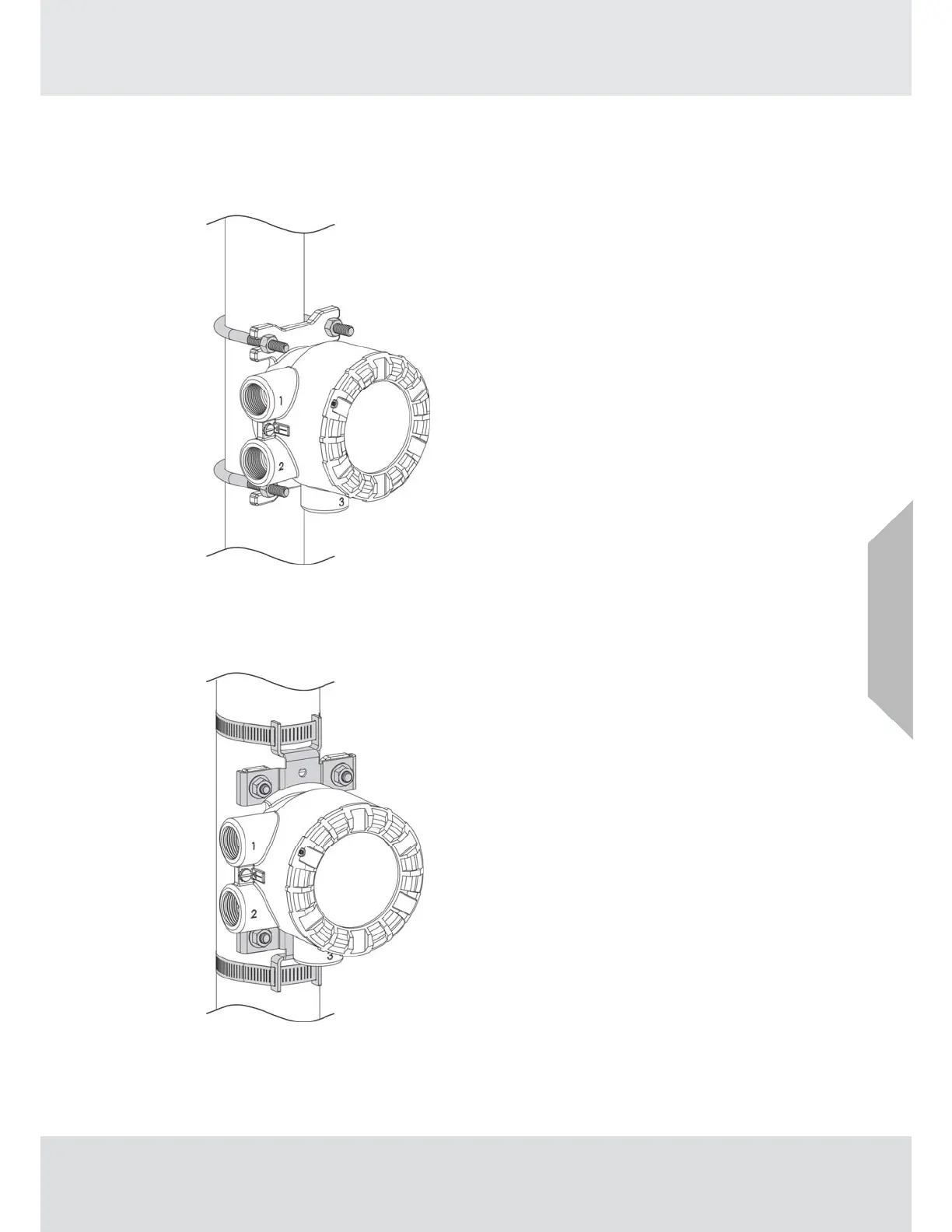

Fig. 14 2" Pipe Mount with U-Bolt
3.3.8 XP Remote Sensor Adjustable Pipe Mount
A Universal Pipe Mount Kit (Part Number 10176946) can be used to mount the remote sensor
housing on pipes ranging from 1-6” (20-150 mm) in diameter. Two brackets are mounted over
top of the integrated mounting tabs and fitted with an adjustable pipe band (not included).
Fig. 15 Adjustable Pipe Mount
