Installation
(10) Replace the board stack by aligning the four metal standoffs with the four holes inside
the TG5000 housing on the mounting plate. Push firmly on the board stack where
indicated (see Fig. 22).

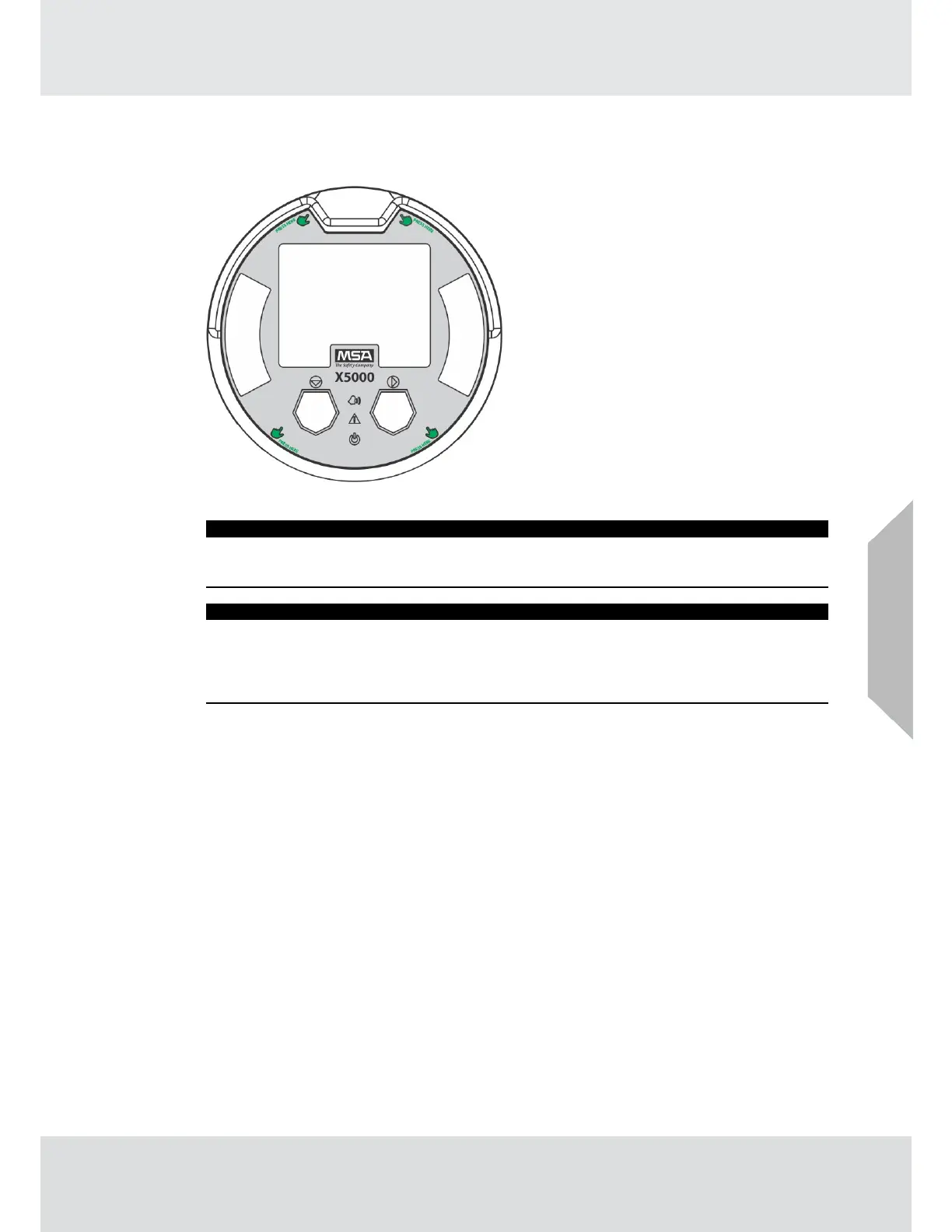

Fig. 22 Highlighted Areas Show Where to Press when Replacing a Board Stack
NOTICE
Ensure that the electronics assembly is fully engaged in the mounting holes. If not fully seated,
the touch interface performance can be negatively affected
NOTICE
Avoid pressing on the left and right areas where the LEDs are located. Pressing directly on the
display will damage the display and will void the warranty.
Care must be taken to insure the TG5000 label inside overlay surface is free of smudges/dirt and
grease. Dirt and grease can interfere with the touch interface of the display.
US
