47
Operation

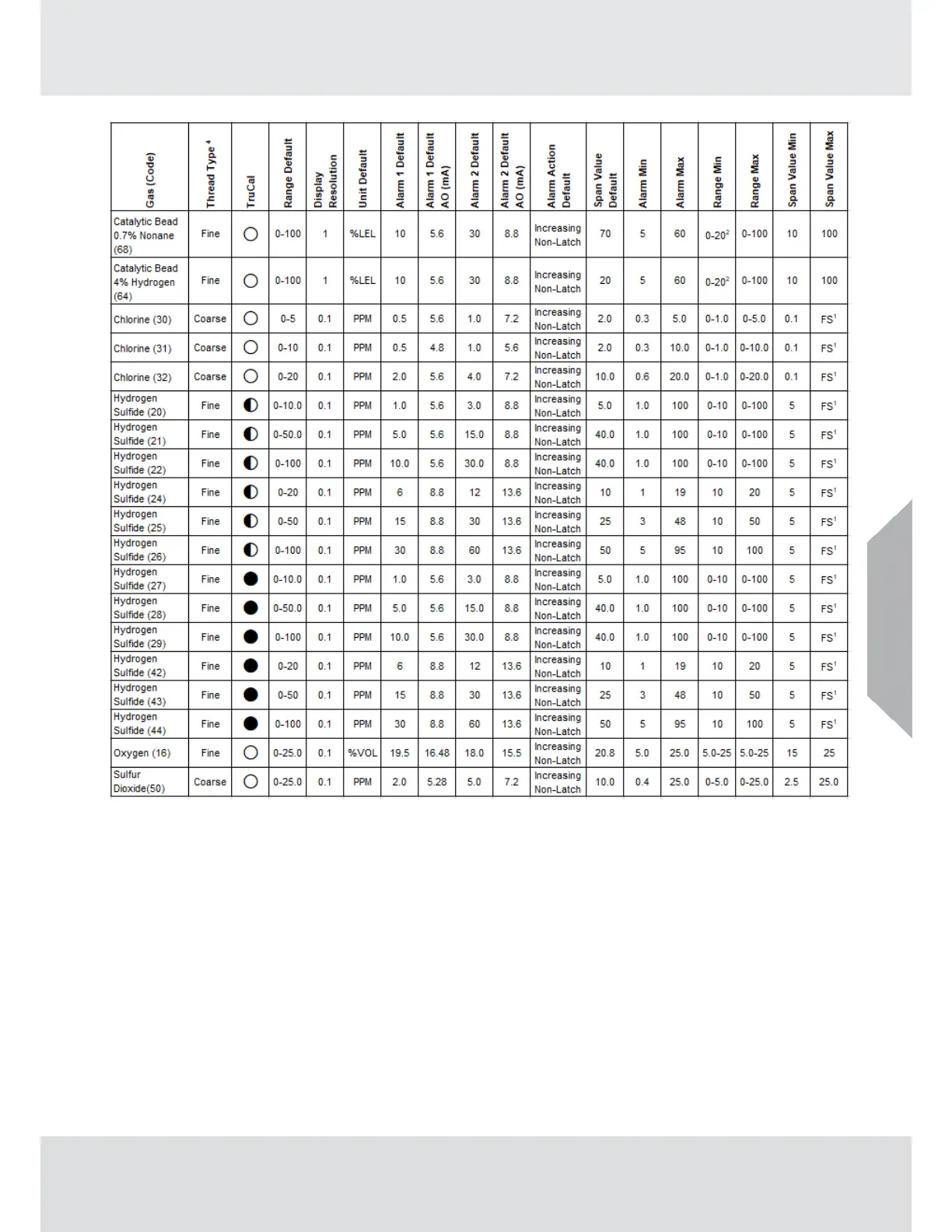

Tab. 14 Default Sensor Settings
1
FS = Full Scale Range.
2
The Range Max value on catalytic bead cannot be set below 20%.
3
Display resolution is not a configurable option
4
Class I Division 2/Zone 2 Only sensors do not have a flame arrestor (aka Frit). Course threads
on the sensor assembly and sensor body are used to prevent a customer from installing into a
Class I Division 1/Zone 1 sensor body.
○ TruCal not available
◐ Adaptive Environmental Compensation (AEC) Equipped
● AEC and Diffusion Supervision Equipped
