MSA ULTIMA X5000 User Manual

3.4.10MountingwithaSunshield
AsunshieldisrequiredtoprotecttheULTIMAX5000fromdirectsunlight(P/N10180254).Thesunshieldcanbeusedin
anyofthemountingconfigurations.

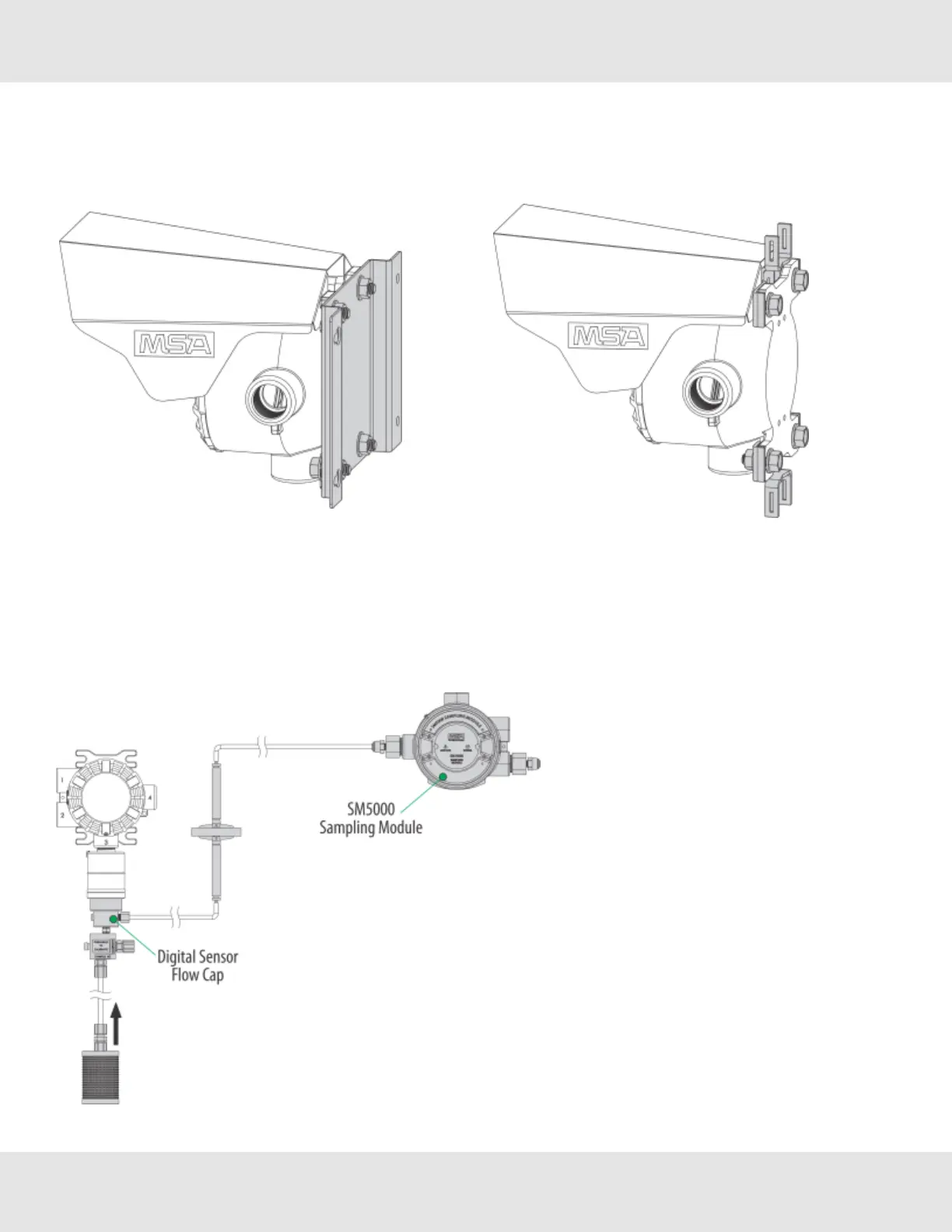

Figure 21 Sunshield with Wall Mounting Bracket Figure 22 Sunshield with Universal Pipe Mount
3.4.11MountingwithanSM5000SamplingModule
Anaspirated(P/N10058101)andaDCpump(P/N10043264)modelareavailableforusewiththeX5000witheitherdigital
orXIRsensors.FormoreinformationonmountingrequirementsandusewithSM5000samplingmodules,seetheSM5000
operatingmanual(s).
21 Ultima X5000 Gas Monitor US
3 Installation

MSA ULTIMA X5000 Specifications

General

Ingress Protection	IP66/67
Sensors	Electrochemical, infrared
Communication	HART, Modbus
Target Gases	Combustible gases, toxic gases, oxygen
Approvals	ATEX, IECEx, UL, CSA, SIL 2
