3.4.9 DuctMount
Ductmountkitsareavailableformonitoringatmosphereinsideflatorroundducts.Roundductmountkitsareavailablefor
smallducts12-20"(305-508mm)indiameter(P/N10179124)andlargeducts20-40"(508-1016mm)indiameter(Part
Number10179321).Theflatductmount(P/N10176947)isuniversalforflatducts.
NOTICE
Considerthesensortypebeforechoosingaductmountlocation.ULTIMAXIRPlussensorsshouldbemountedhorizontally
andallothersensorsshouldbemountedvertically.
NOTICE
Airflowintheductmustbezerotoensurepropercalibration.

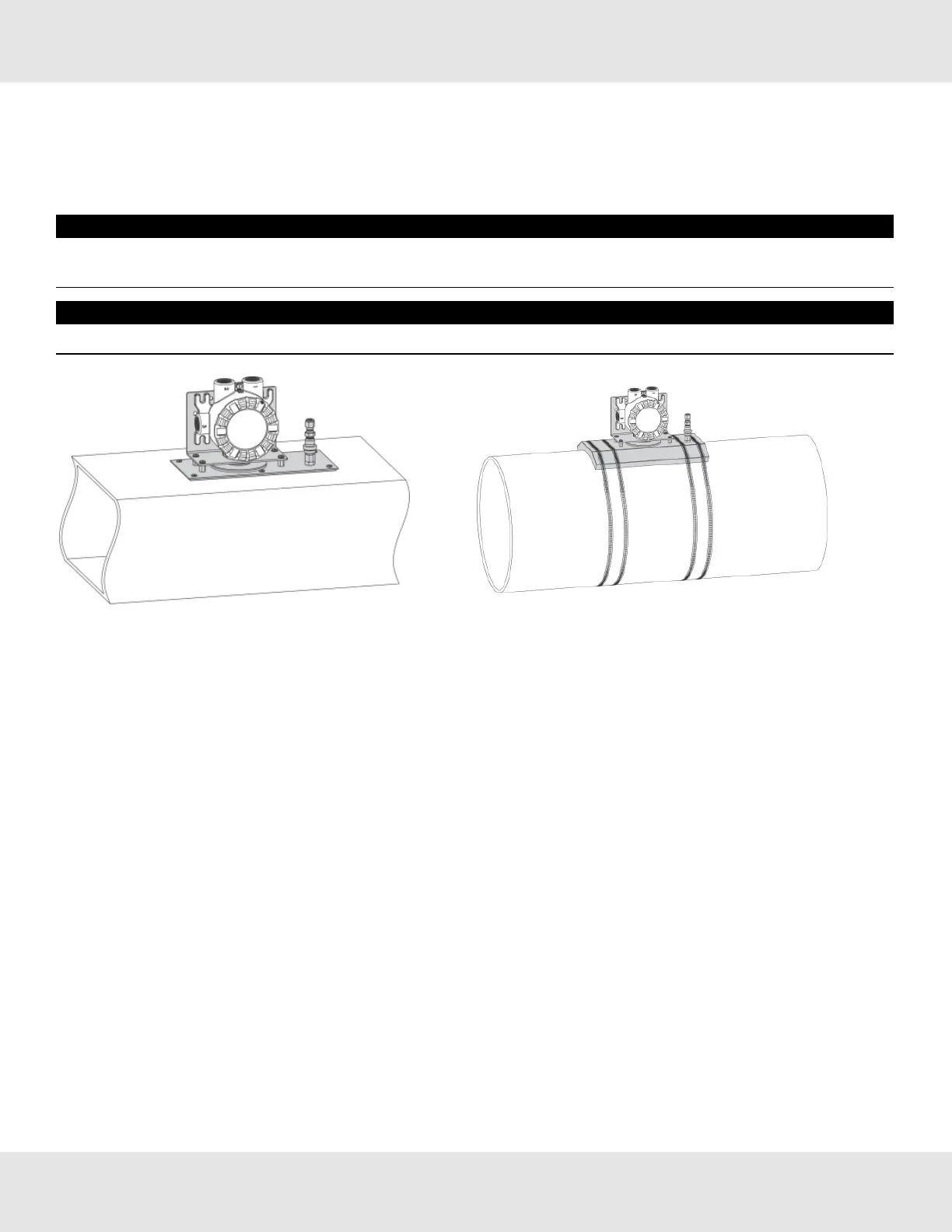

Figure 19 Flat Duct Mount Figure 20 Round Duct Mount
US Ultima X5000 Gas Monitor 20
3 Installation

MSA ULTIMA X5000 Specifications

General

Ingress Protection	IP66/67
Sensors	Electrochemical, infrared
Communication	HART, Modbus
Target Gases	Combustible gases, toxic gases, oxygen
Approvals	ATEX, IECEx, UL, CSA, SIL 2
