2-26
MS-9121 E-ATX Mainboard

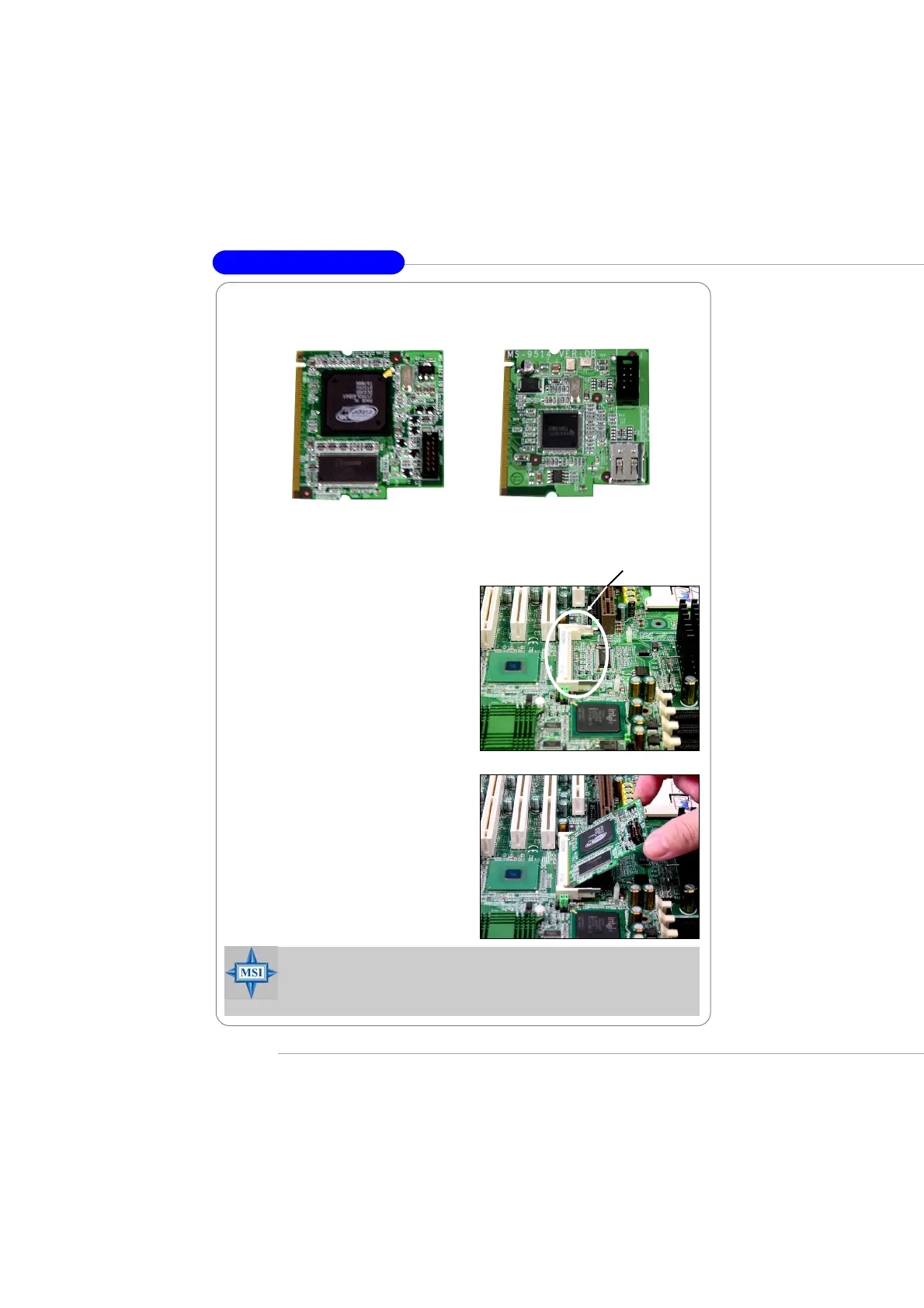

Mini PCI bus: This bus is used to connect the MS-9513 VGA card or
MS-9514 IEEE 1394 card.
Installing the card:
MS-9513 VGA card MS-9514 IEEE 1394 card
2. Place the card over the Mini PCI slot
and gently insert both ends of the card
slantways (at an angle of 45 degrees)
into the slot until the golden finger of
the card gets fully inserted into the slot.
Mini PCI slot
1. Locate the Mini PCI slot on the
mainboard.
MSI Reminds You...
You can barely see the golden finger if the card is properly
inserted in the socket.
