USER MANUAL V1.0 | Updated January 19, 2019 16

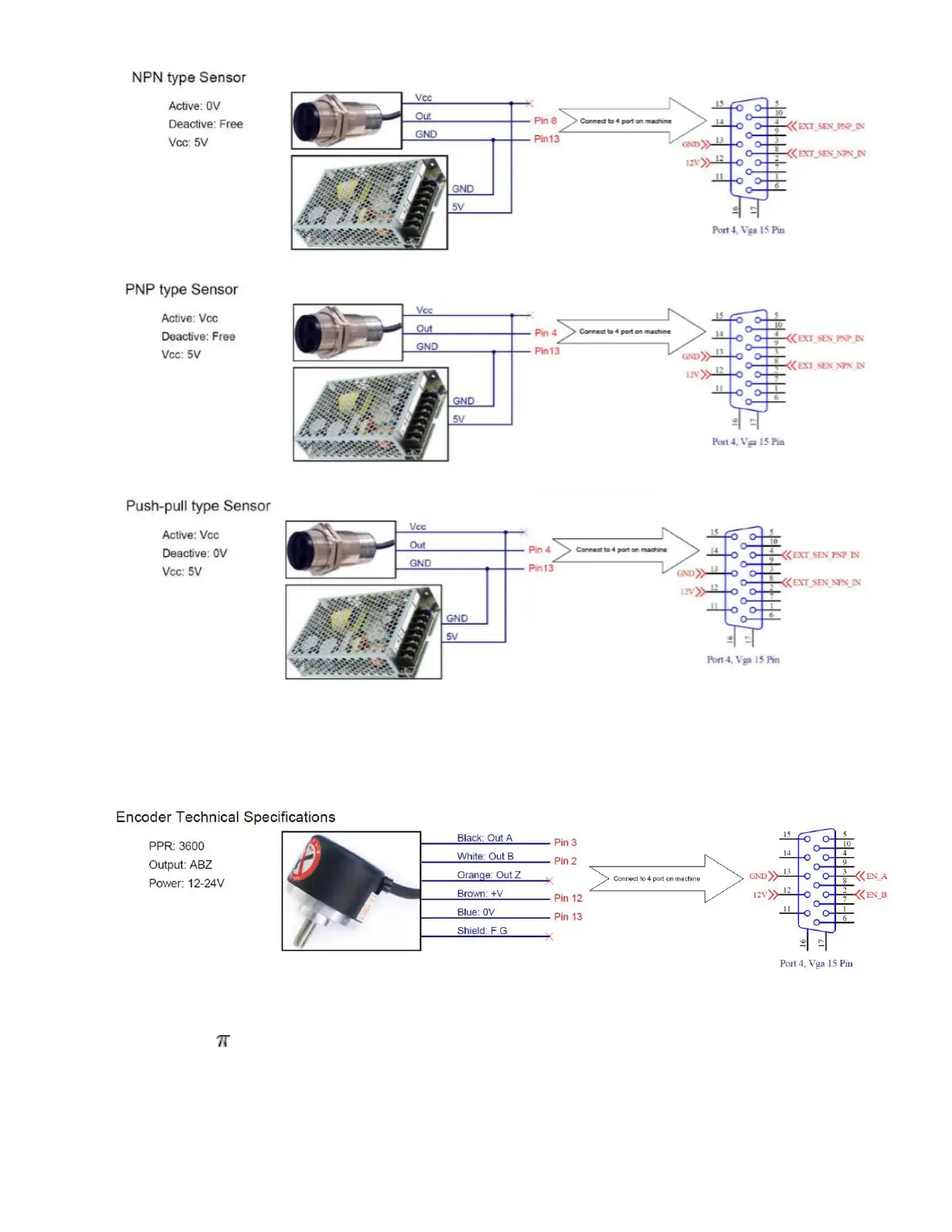

ENCODER
An encoder is recommended to ensure the best print quality regardless the inconsistent speed
of conveyor.
To calculate wheel diameter (D) depend on resolution (R) is:
D = R/( x 600) (inches).
Example: Encoder has R = 3600 (PPR),
D = 1.90985 inches ~ 48.5 mm.
