USER MANUAL V1.0 | Updated January 19, 2019 17
COMBINE EXTERNAL SENSOR AND ENCODER
In some case you need to use external sensor and encoder to get perfect printing quality. But
the machine has only one extended port. Please follow instructions to make an external
sensor and encoder work together with machine.

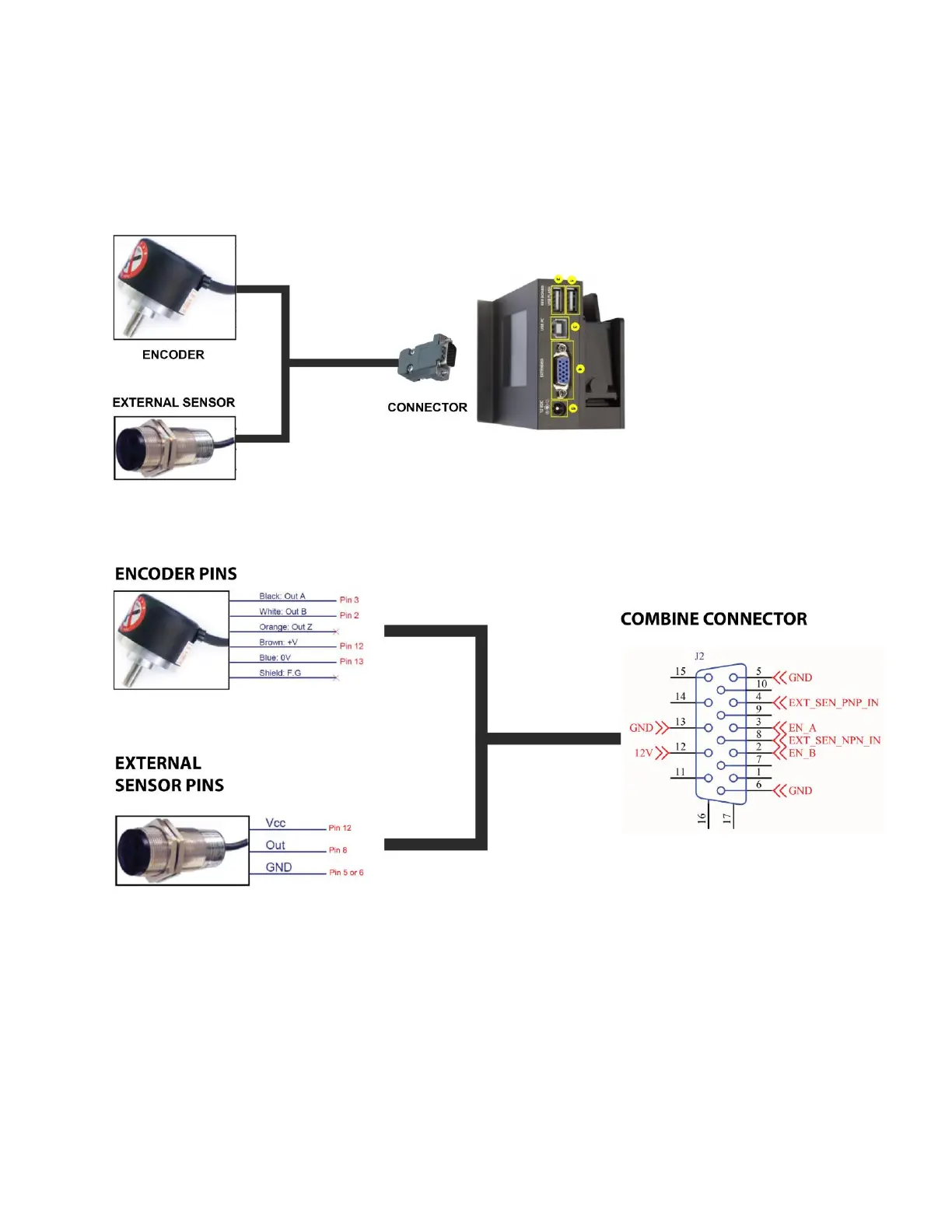

See picture for this situation.
See this picture for connection pins.
NOTES:
PIN12 (12V) use for both of Encoder and External sensor.
