Belts and Cables

Auger Belt

To remove/replace the Auger Belt:

NOTE: Prior to servicing or replacing any belts stop the

engine and allow it to cool. Then disconnect spark

plug and ground it to the engine

NOTE: If the unit is throwing the Auger Belt, inspect the

round part of the Auger Housing that the impeller

spins in. If there is a buckle or a crease in it, the

Auger Housing is bent and must be replaced

before replacing the belt.

1. Remove the two screws that secure the belt cover

using a 3/8” wrench. See Figure 2.1.

2. Lift the belt cover off of the unit.

NOTE: Some units have a belt guide. The belt guide can

be removed by removing the two screws, by the

arrows in Figure 2.2., using a 1/2” wrench.

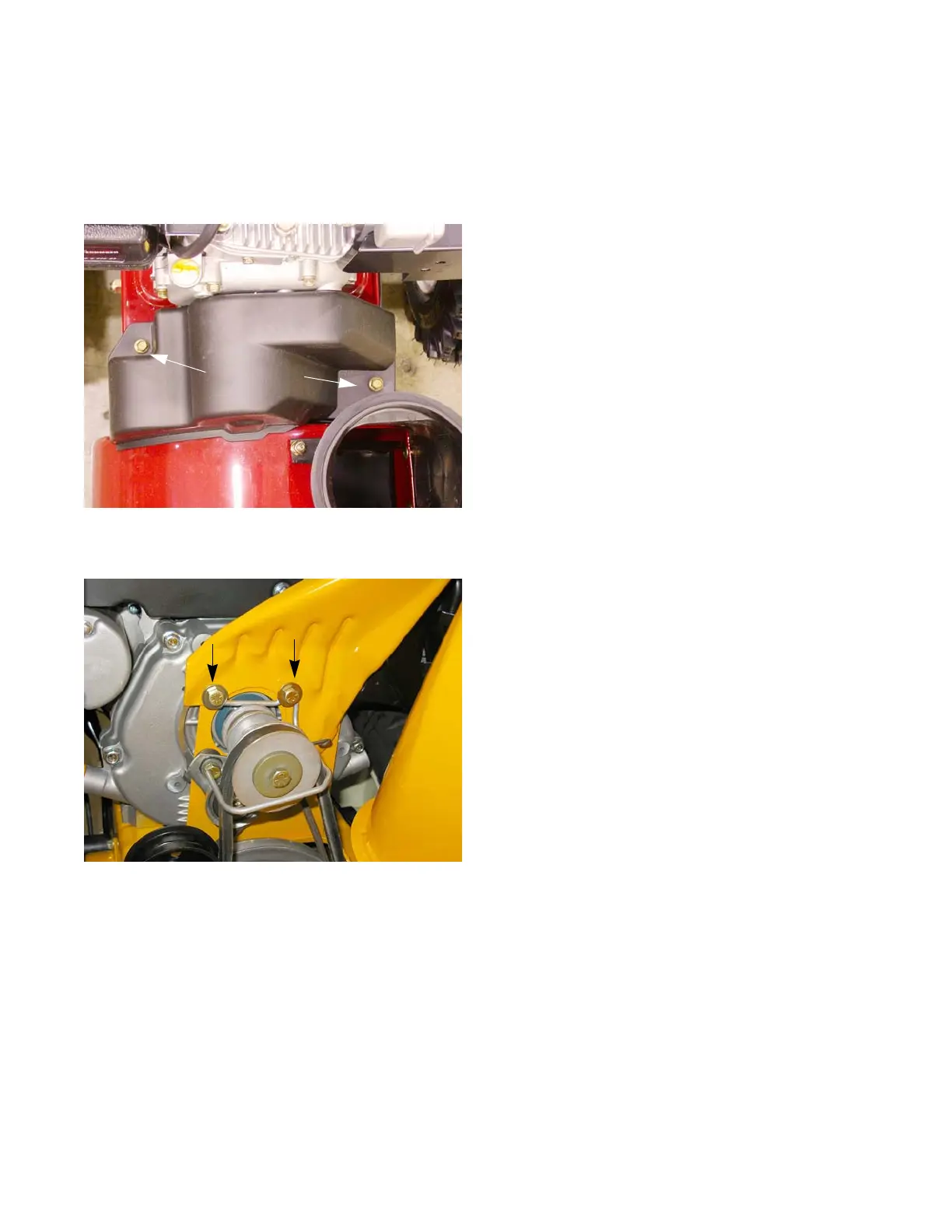

Figure 2.1

3/8”

Hex Screws

Figure 2.2

Chapter 2: Belts And Cables

MTD H Style 600 Series Shop Manual
