Discharge Chute and Controls (Electric)
137
Chute Control Motors
To remove/replace a Chute Control Motor:
1. Remove the Chute Control Assembly by following the
procedures described in the previous section of this
chapter.

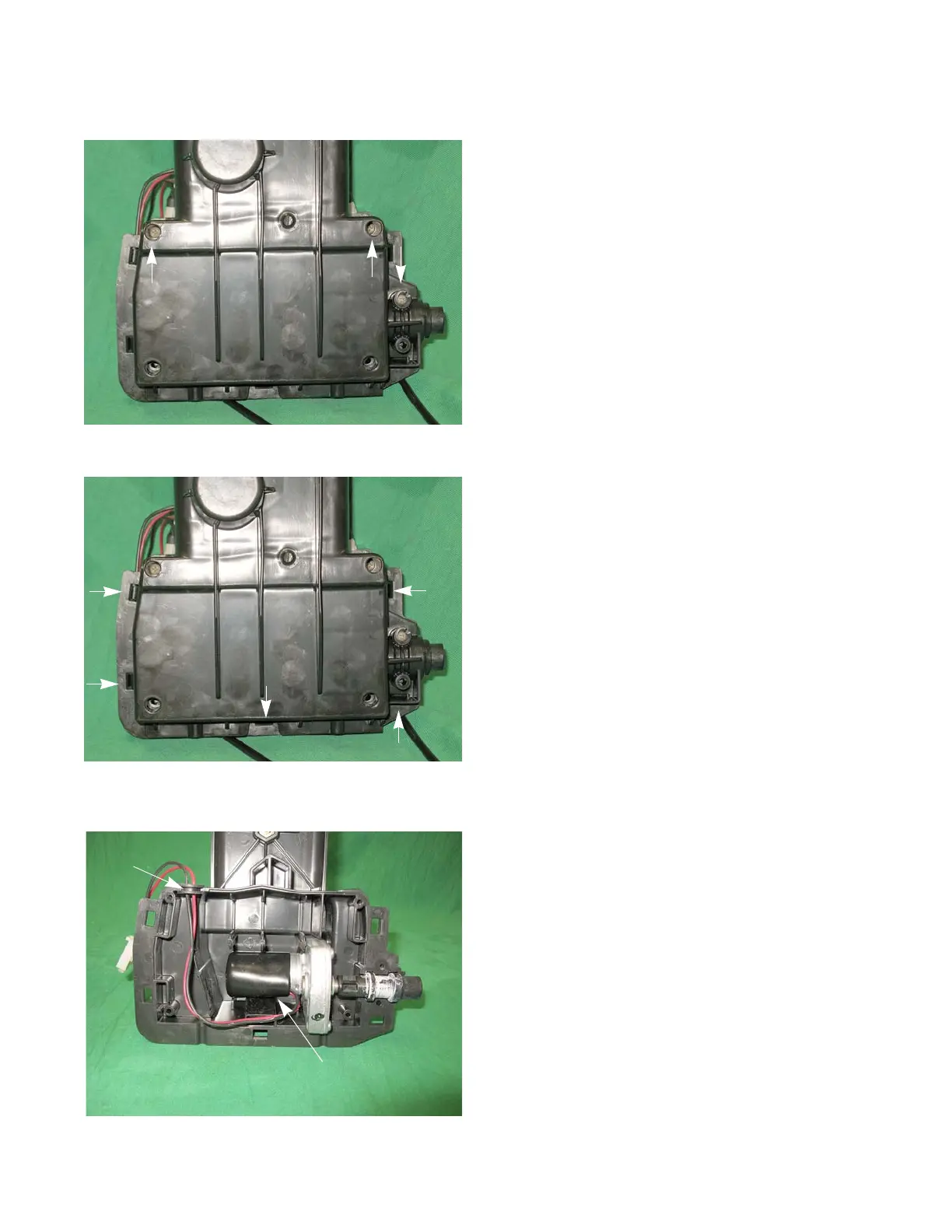

2. Remove the screws, indicated by the arrows in Fig-
ure 11.48, using a #2 Phillips screwdriver.
3. Depress the five tabs, indicated by the arrows in Fig-
ure 11.49, while separating the two housing halves.
NOTE: For the Pitch Motor, skip to step 7.
4. Slide the Chute Rotation Motor Harness Grommet
out of the left housing. See Figure 11.50.
5. Lift the Rotation Motor out of the housing.
Figure 11.50
Grommet
Rotation Motor
