Discharge Chute and Controls (Manual Crank)
89
Discharge Chute (Manual Crank, Cork Screw Style)
To remove/replace the Discharge Chute:

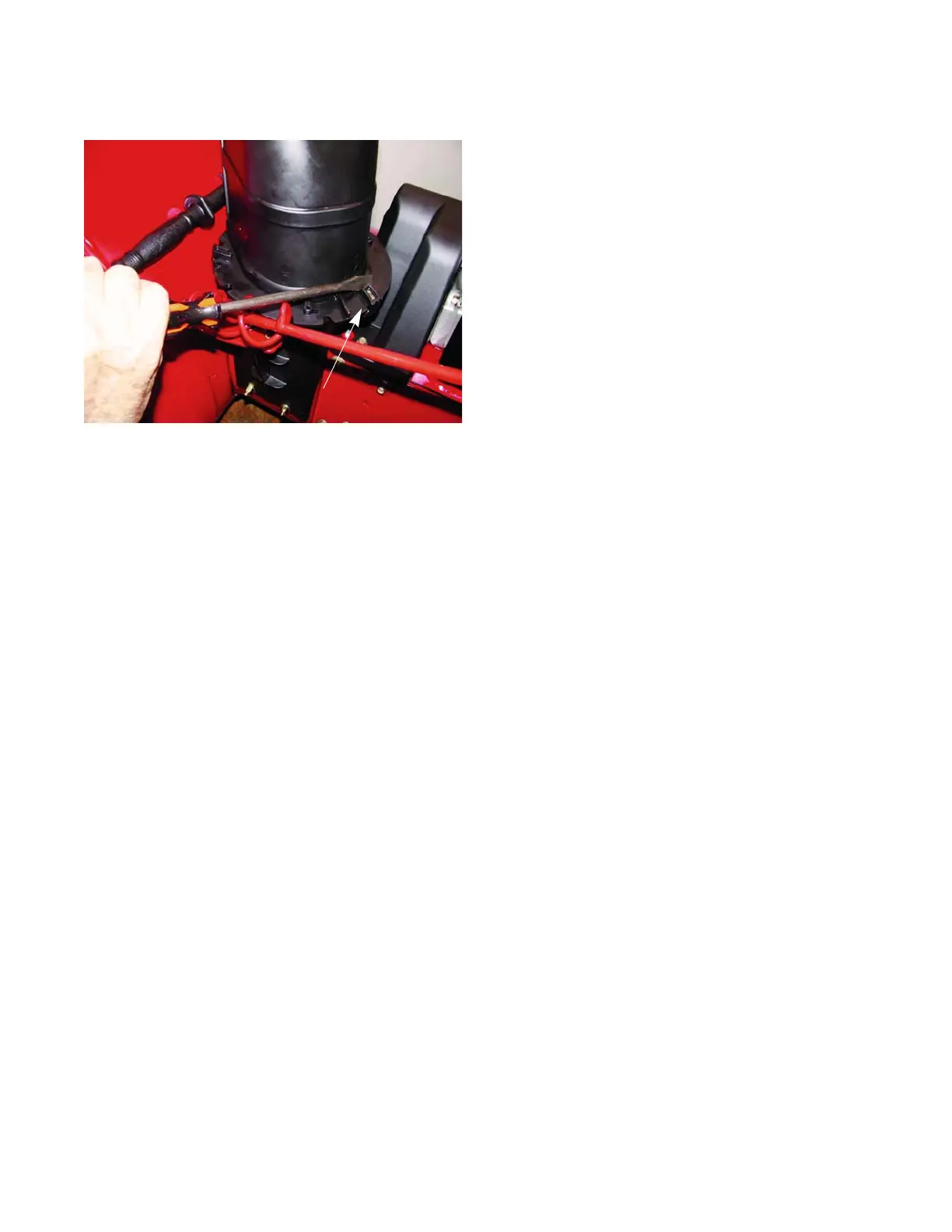

1. Pry open the three Flange Keepers securing the dis-
charge chute to the chute adapter.Figure 8.15
2. Lift the chute assembly off the mounting base of the
main housing.
NOTE: If the unit is equipped with remote pitch control,
refer to the Remote Pitch Control Head section to
remove the control head.
To install the chute:
1. Position the chute over the base.
2. Close the Flange Keepers to secure the chute to the
base.
NOTE: If the Flange Keepers will not easily click into
place, use the palm of your hand to apply swift,
firm pressure to the back of each one.
