Medium Frame 2 & 3 Stage Snow Throwers
90
Discharge Chute (with Remote Head)
1. Remove the hair pin clip that secures the shaft from
the hand crank or joystick, if equipped. See Figure
8.16.
2. Remove the bow tie clip.
3. Remove the clevis pin that holds the Remote Head
to the Support Bracket. See Figure 8.17.
4. Remove the wing nut.
NOTE: Units with a steel chute have a lock nut
instead of a wing nut. See Figure 8.18.
NOTE: Units with a steel chute have the nut, for the
bolt that attaches the remote head to the
chute, exposed. It must be held with a 7/16”
wrench during step 5.

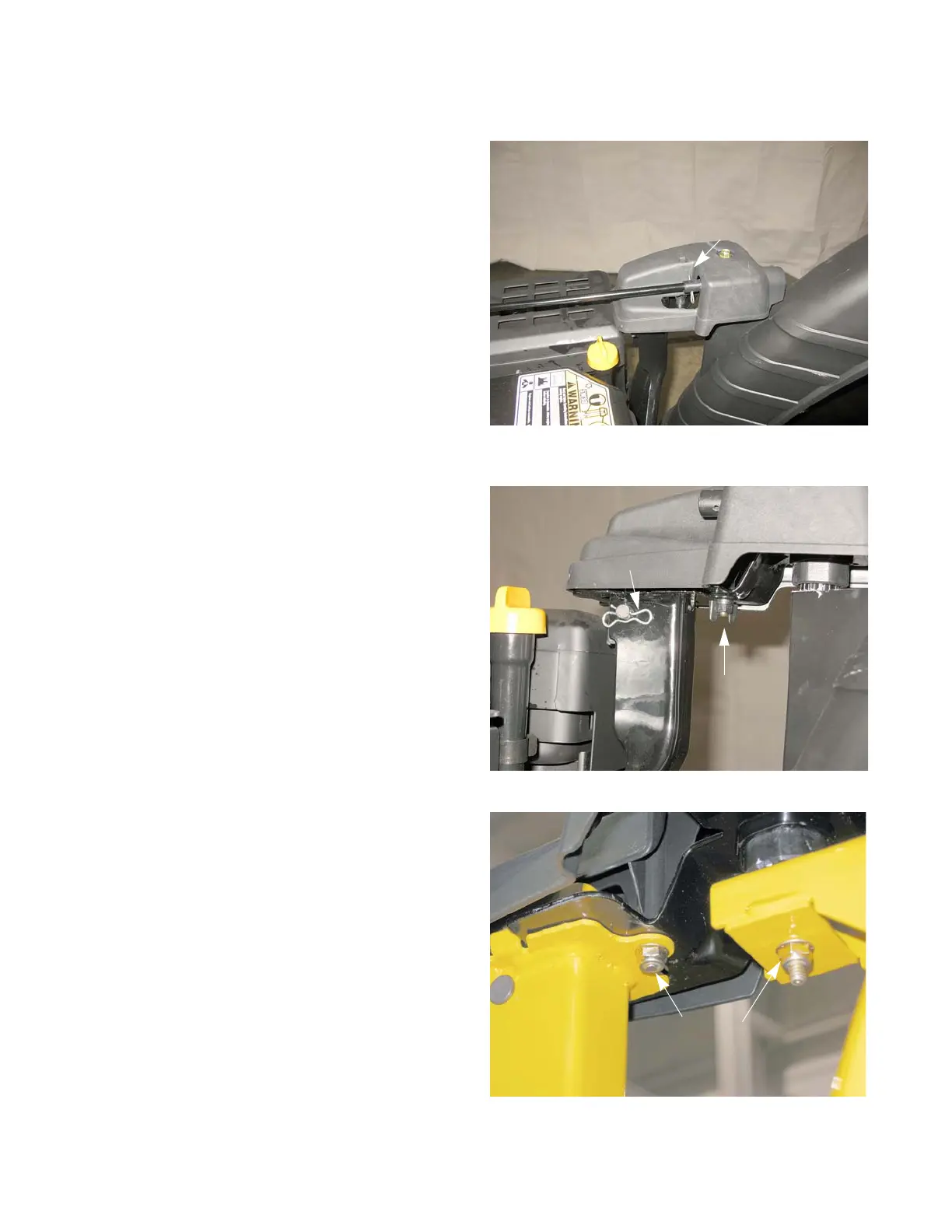

Figure 8.16
Hair Pin Clip
Figure 8.17
Bow Tie Clip
Wing Nut
Figure 8.18
Lock nuts
