Medium Frame 2 & 3 Stage Snow Throwers
86
Remote Pitch Control Head (Steel Chutes)
To remove/attach the Pitch Control Head to/from the Chute
Deflector:
NOTE: The Remote Pitch Control Head consists of
a Cable Guide, Cable Guide Bracket, and
the cables that run to the pitch control lever/
joystick.
1. Remove the wing nut, washer and carriage bolt that
holds the left side of the Chute Deflector to the Dis-
charge Chute.

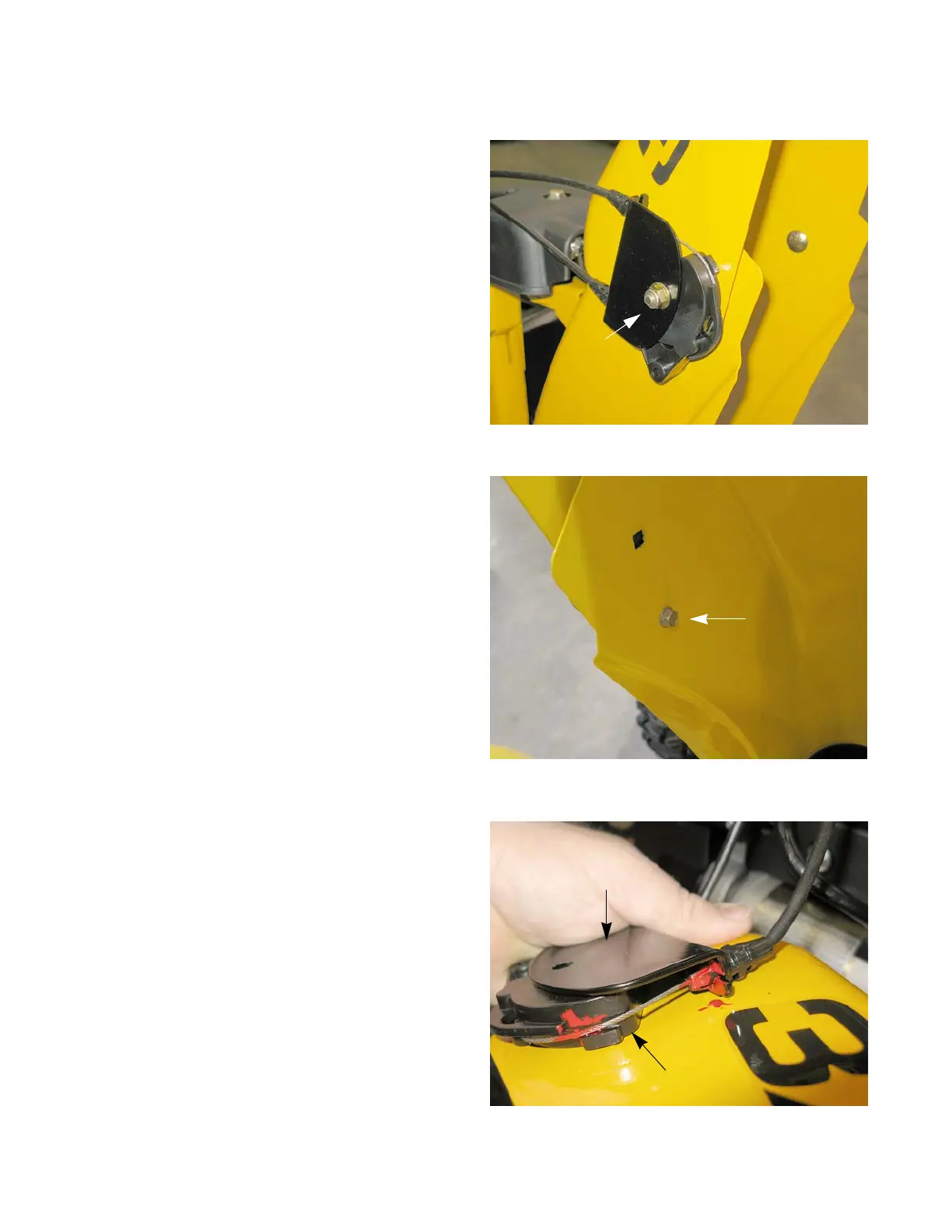

2. Remove the nut, indicated by the arrow in Figure
8.7, and the carriage bolt that holds the right side of
the Chute Deflector to the Discharge Chute using a
1/2” wrench.
3. Remove the screw, indicated by the arrow in Figure
8.8, that anchors the Cable Guide to the Discharge
Chute using a 3/8” wrench.
4. Slide the Chute Deflector off of the snow thrower.
5. Mark one of the cables and its location in the Cable
Bracket and Cable Guide. See Figure 8.9.
6. Slide the Cable Guide out as far as it will go.
7. Disconnect both cables from the Cable Bracket.
NOTE: The Cable Bracket can not be removed from
or install on the Chute Deflector with the
cables attached.
Figure 8.9
Cable Guide
Cable Bracket
To Next Page
