MTD H Style 600 Series Shop Manual

Discharge Chute and Controls (Manual Crank)
87
8. Disconnect the cables from the Cable Guide. See
Figure 8.10.
9. Unhook the Cable Bracket from the Chute Deflector.
To install the Chute Deflector:
1. Hook the Cable Bracket onto the Chute Deflector.
See Figure 8.11.
2. Attach both cables to the Cable Guide.
NOTE: Forward movement of pitch control lever/joystick
should result in the Chute Deflector moving down.
NOTE: If the cables are reversed, the chute operation will
be reversed.
3. Slide the Cable Guide in between the Chute Deflec-
tor and the Cable Bracket.
4. Insert the Cable Jacket Ends into the slots in the
Cable Bracket. See Figure 8.12.

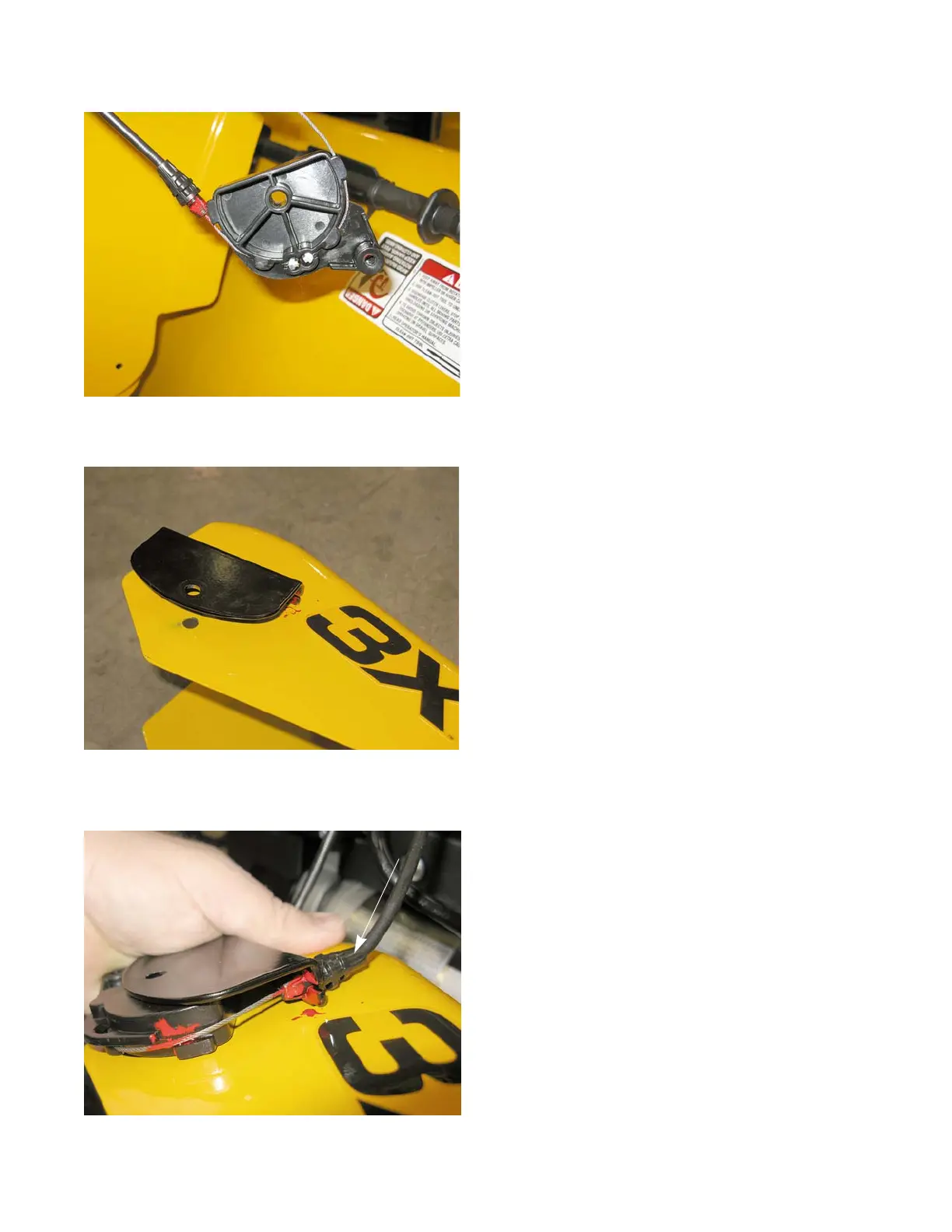

Figure 8.10
Figure 8.11
Figure 8.12
Cable Jacket End
