Medium Frame 2 & 3 Stage Snow Throwers
20
Auger and Drive Lever Interlock
To remove/service the Auger And Drive Lever Interlock:
1. Loosen, but do not remove the two screws holding
the auger cable using a 3/8” socket. See Figure
2.28.
NOTE: Place an alignment mark on the adjustment
bracket and the frame for reassembly.
2. Remove the Z-fitting from the Auger Control Lever
with a pair of needle nose pliers.
3. Remove the shoulder bolt using a 3/4” wrench and a
1/2” wrench. See Figure 2.29.
4. Carefully release the tension from the torsion spring
as the bolt is withdrawn.
5. Repeat the previous step on the drive control lever.
6. Detach the pivot rod from the Clutch Lock Cam. See
Figure 2.30.
NOTE: The flats at each end of the pivot rod fit into
the “D” hole in the cam lock.
7. Slide the rod out of the handle panel.

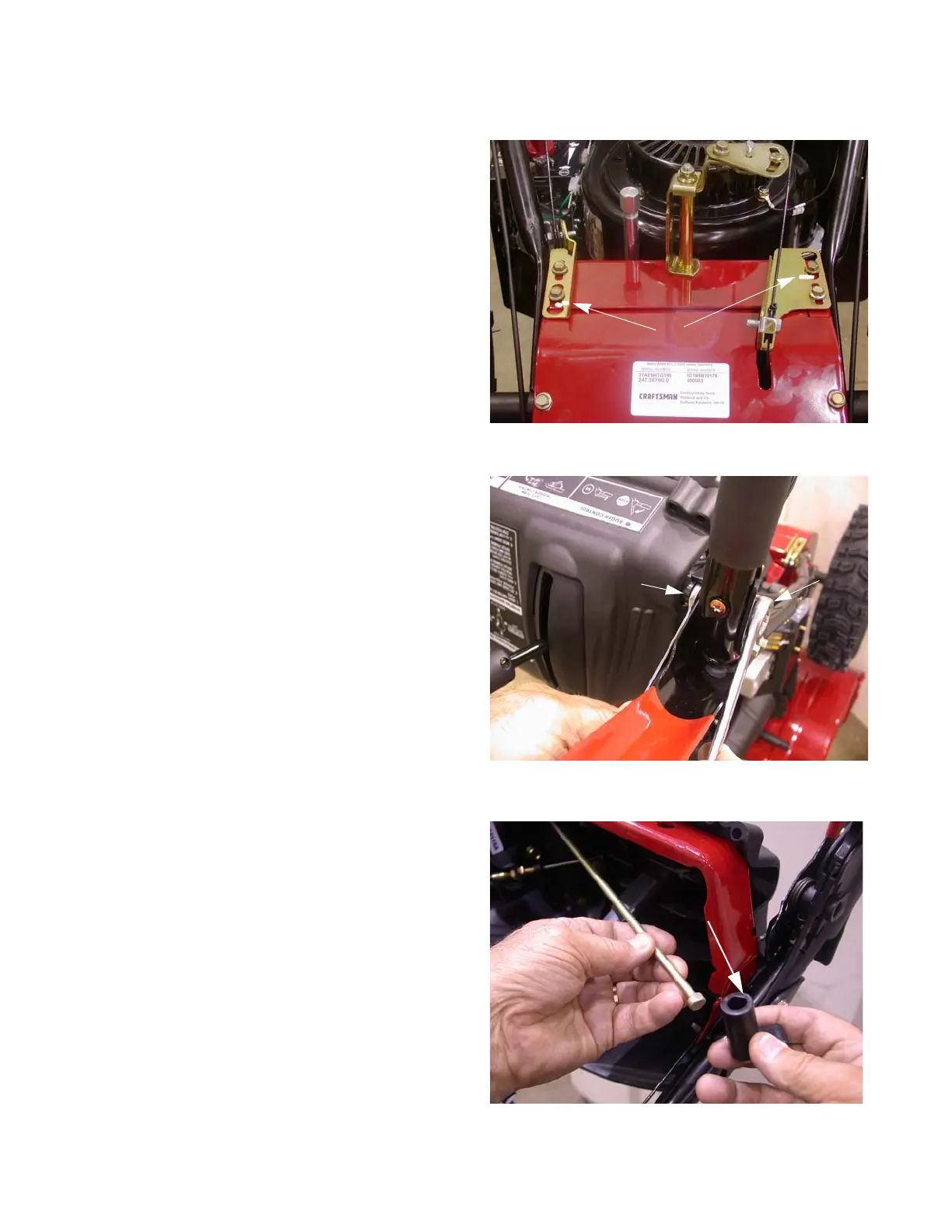

Figure 2.28
Alignment marks
Figure 2.29
3/4””
Wrench
1/2”
Wrench
Figure 2.30
“D” hole
