Medium Frame 2 & 3 Stage Snow Throwers
142

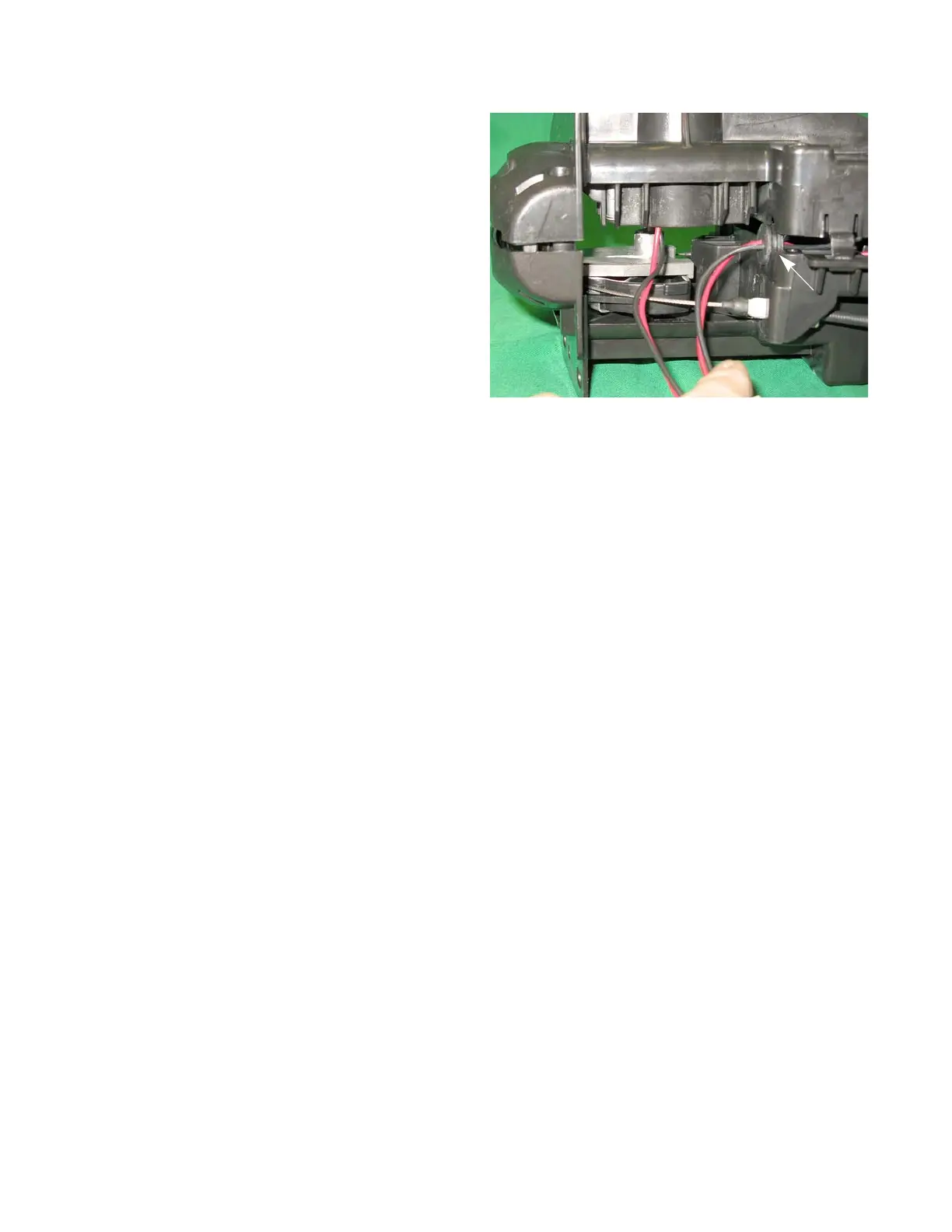

NOTE: Make sure the Rotation Motor Harness
Grommet is seated in the notch in the hous-
ings.
NOTE: Make sure both motor harnesses are routed
to the rear of the assembly as the housings
are brought together. See Figure 11.55.
NOTE: Tighten the three housing screws to a torque
of 10 - 20 in lbs (1 - 2 Nm).
8. Install the Chute Control Assembly by following the
procedures described in the Chute Control Assem-
bly section of this chapter.
9. Test run the unit in a safe area before returning it to
service.
