MTS Systems FlexTest IIm - Model 497.01 Analog Chassis Rear Panel; Sample Control Channel

MTS 793 Controller Hardware FlexTest IIm Controller Connections
165
Sample control
channel

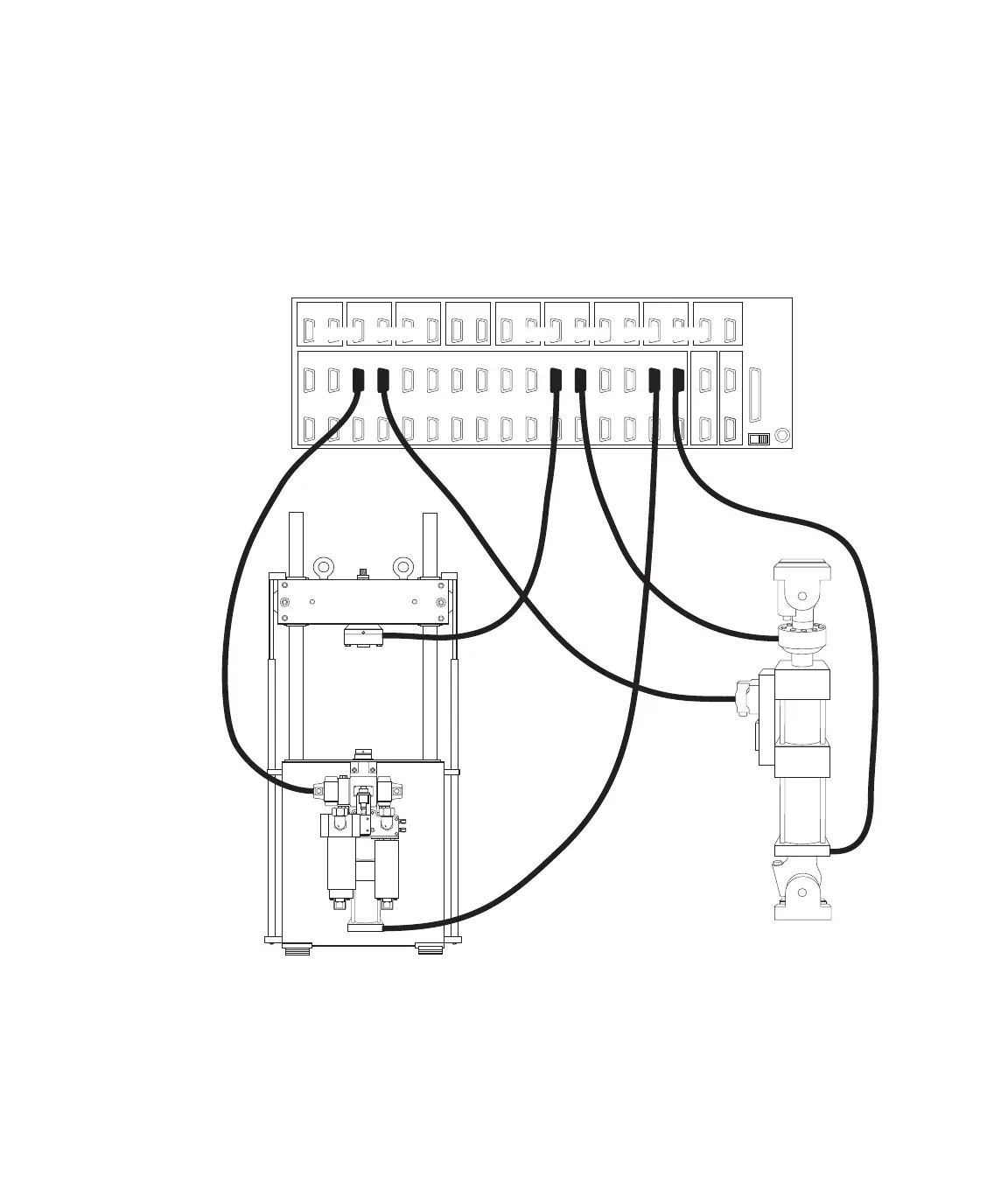

The following graphic illustrates sample connections to a sensor and a
servovalve.
Valve Driver
Signals
DC Conditioner
Signals
AC Conditioner
Signals
Force
(load
sensor)
J101J201J501J601J1301J1401
LVDT
LVDT (displacement sensor)
Valve
Force
Valve
Model 497.01 Analog Chassis Rear Panel
