FlexTest SE Controllers
MTS 793 Controller Hardware Introduction
27

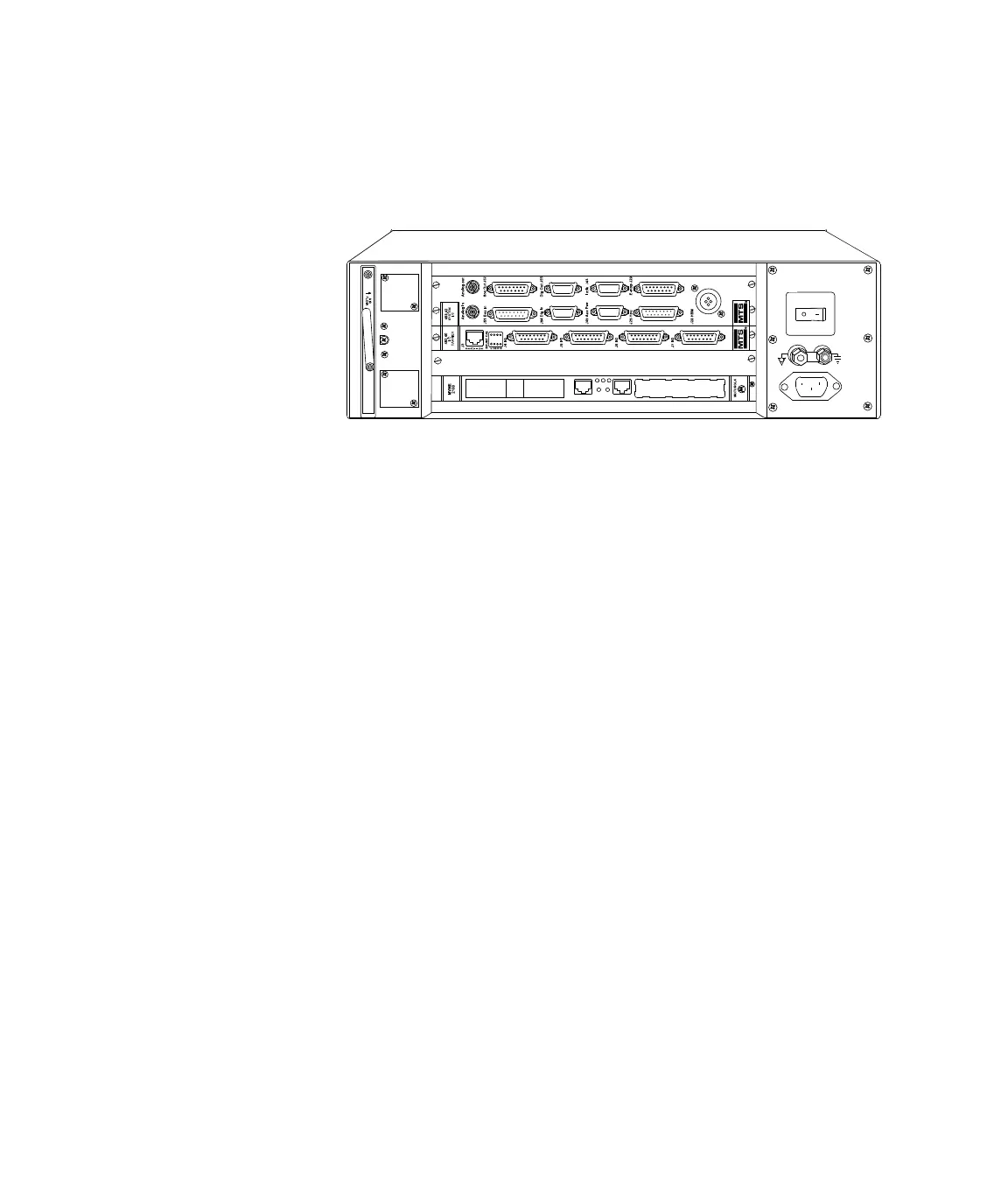

Model 493.02 Chassis
rear panel
Except for two front panel BNC connectors, all cabling is accessed
through the controller’s rear panel. It is not necessary to remove the
chassis cover to access jumpers or switches. The chassis can be rack
mounted or used in a table-top configuration.
Hydraulic control
The controller provides complete control of the test system hydraulics.
It can be used to control a hydraulic power unit and a hydraulic
service manifold to apply low and high hydraulic pressure to the test
system. In multiple controller configurations, the controller provides
first-on/last-off control of the hydraulic power unit in addition to
control of a local hydraulic service manifold.
Interlocks
The controller provides interlocks for adjustable upper/lower limit,
underpeak, error detection for each sensor conditioner installed, and
others. These interlocks can be daisy-chained for multiple controller
configurations.
TYPE E PC-MIP
TYPE E PC-MIP
RUN 6TS BFL
ABT RST
DEBUG
PCI MEZZANNE CARD
Power
100–240 VAC
50–60 Hz, 12–6A
TS-G435
FlexTest SE
Rear Panel
