MTS 793 Controller Hardware
Installing 497/498 Electronics (FTIIm)
Installation
68

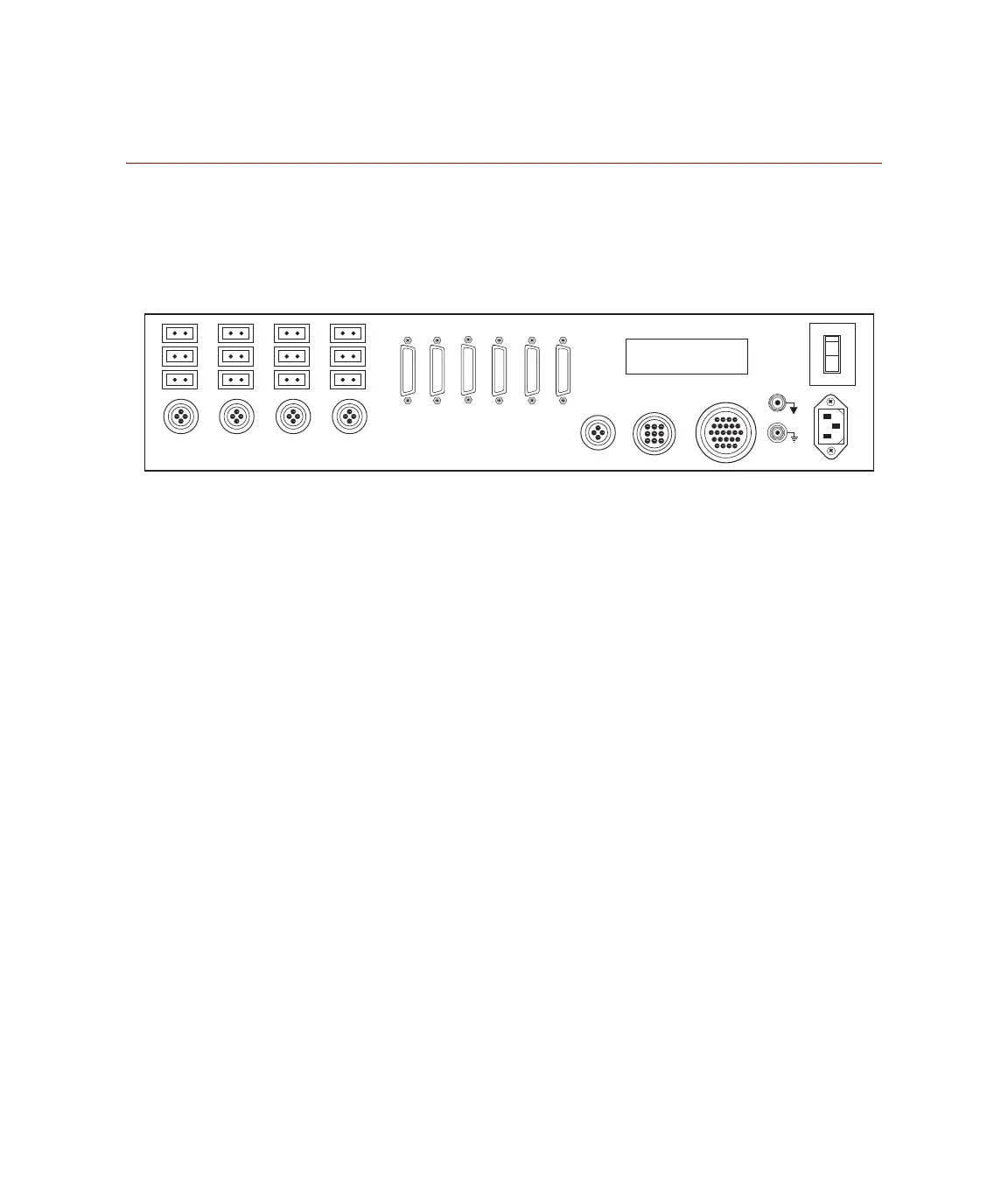

Model 497.05 Hydraulic Control Panel
The rear panel connectors of the hydraulic control panel are cabled to
the hydraulic components of your system. The connectors also
interface with the 497.01 Analog Chassis and 498.22 Test Processor
chassis.
J1 The 497.05 contains the power supply for a 497.01 Analog Chassis.
Connect your 497.01 Analog Chassis to J1.
J8 This connector communicates hydraulic status with the 498.22 Test
Processor chassis.
J9 This connector is not used in a standard FlexTest IIm system.
J15A–J17D Each HSM channel has a set of three user defined interlock inputs
(Interlock 1, Interlock 2, and Shutdown). These inputs can be
configured to monitor contact closure or to accept logic level inputs.
J25 This connector controls the hydraulic power supply (HPS).
J26 This connector accommodates a remote Emergency Stop switch.
J28A–J28D These connectors control up to four hydraulic service manifolds
(HSMs).
J41 and J42 These connectors create a serial communications loop between all of
the chassis in your system.
J51 and J52 These connectors create an interlock communications loop with the
other chassis in your system.
I
O
J41
Com In
J8
Hyd Enab
J15C
J16C
J17C
J15B
J16B
J17B
J15A
J16A
J17A
J1
497.01 Power
J26
Remote E-Stop
J25
HPS
J52
Intlk Out
J51
Intlk In
J42
Com Out
J9
Mstr/Slv
J28D
J15D
J16D
J17D
J28C J28B J28A
Hydraulic Control Panel
