FlexTest SE Controllers
MTS 793 Controller Hardware Introduction
25
FlexTest SE Controllers
The MTS Model 493.02 FlexTest SE Controller is a fully digital
Proportional, Integral, Derivative, Feedforward (PIDF) servocontroller.
It provides complete control of one servohydraulic channel or station
in an MTS test system.

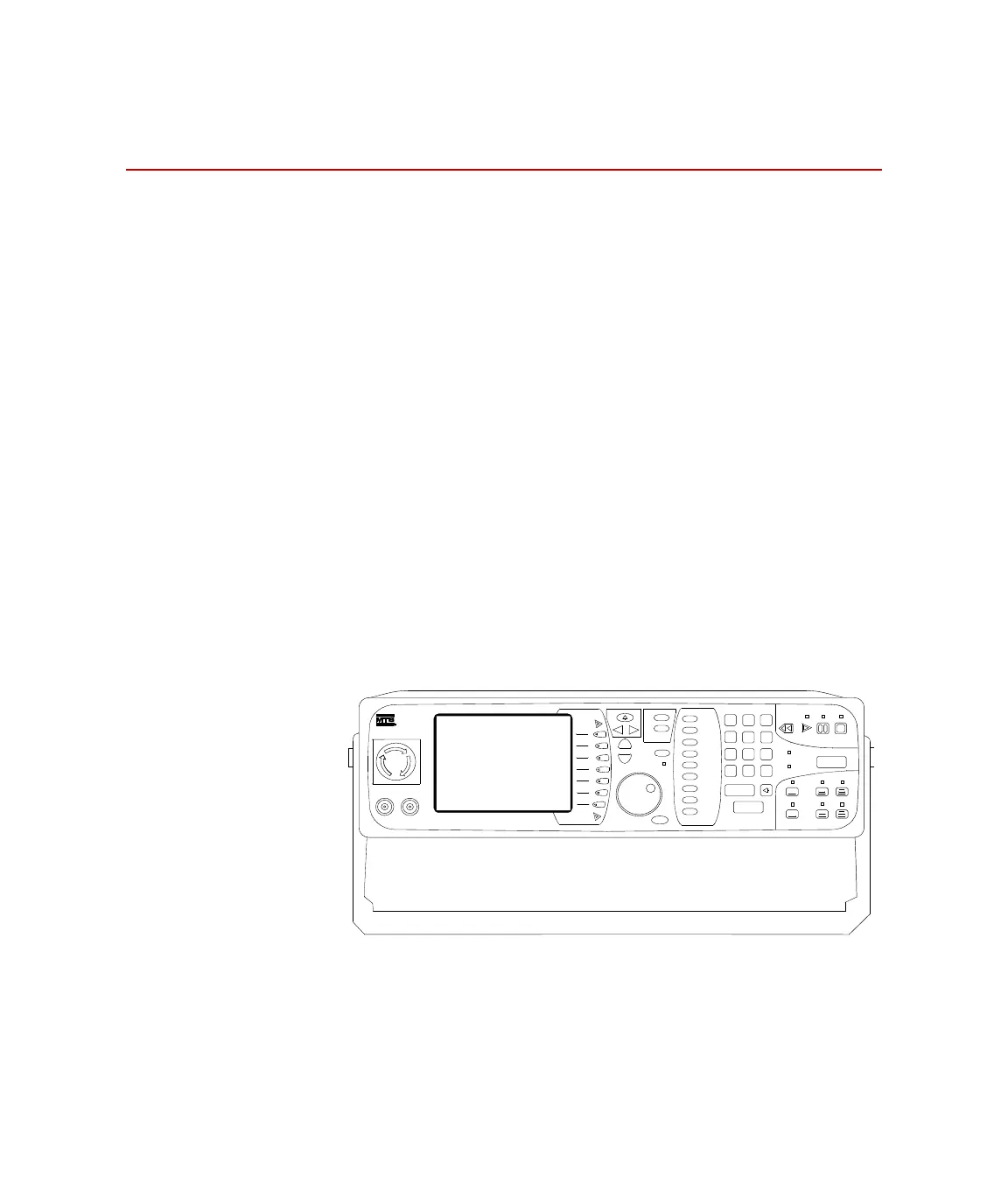

FlexTest SE Controller The FlexTest SE may be operated in the standalone mode from its front
panel controls, or in the automated mode with MTS Model 793.00
System Software running on a connected PC.
FlexTest SE front panel
controls
Operations are controlled through the controller’s front panel. An easy-
to-read color display shows the status of the parameter currently being
adjusted or monitored. A simple scroll-through menu provides quick
access to any parameter or function. All parameters are entered
through a keypad or adjusted by a single multi-turn dial. The current
settings are saved in a flash disk and are recalled at start up.
In addition to providing the means to adjust and monitor the test
parameters, the front panel also provides program control, system
hydraulic pressure control, and an Emergency Stop button that shuts
down the system hydraulics in an emergency situation. BNC monitor
connectors are also provided to allow you to connect easily to external
readout devices.
FlexTest SE
Emergency Stop
7
8 9
65
4
3
2
1
.
0
+/-
enter
cancel
FG
Setup
Status
Scope
Meters
Tuning
Config
Limits
Log
Menu
?
A
B
Recall
Enabled
reset
Rewind Run
Hold Stop
Power
Program
Hydraulic
Interlock
Program
Interlock
HPU
HSM
Off
Low High
Off
Low
High
Navigate
Monitor 1 Monitor 2
TS-G436
FlexTest SE
Front Panel
