MTS Systems FlexTest IIm User Manual

MTS 793 Controller Hardware FlexTest IIm Controller Connections
171

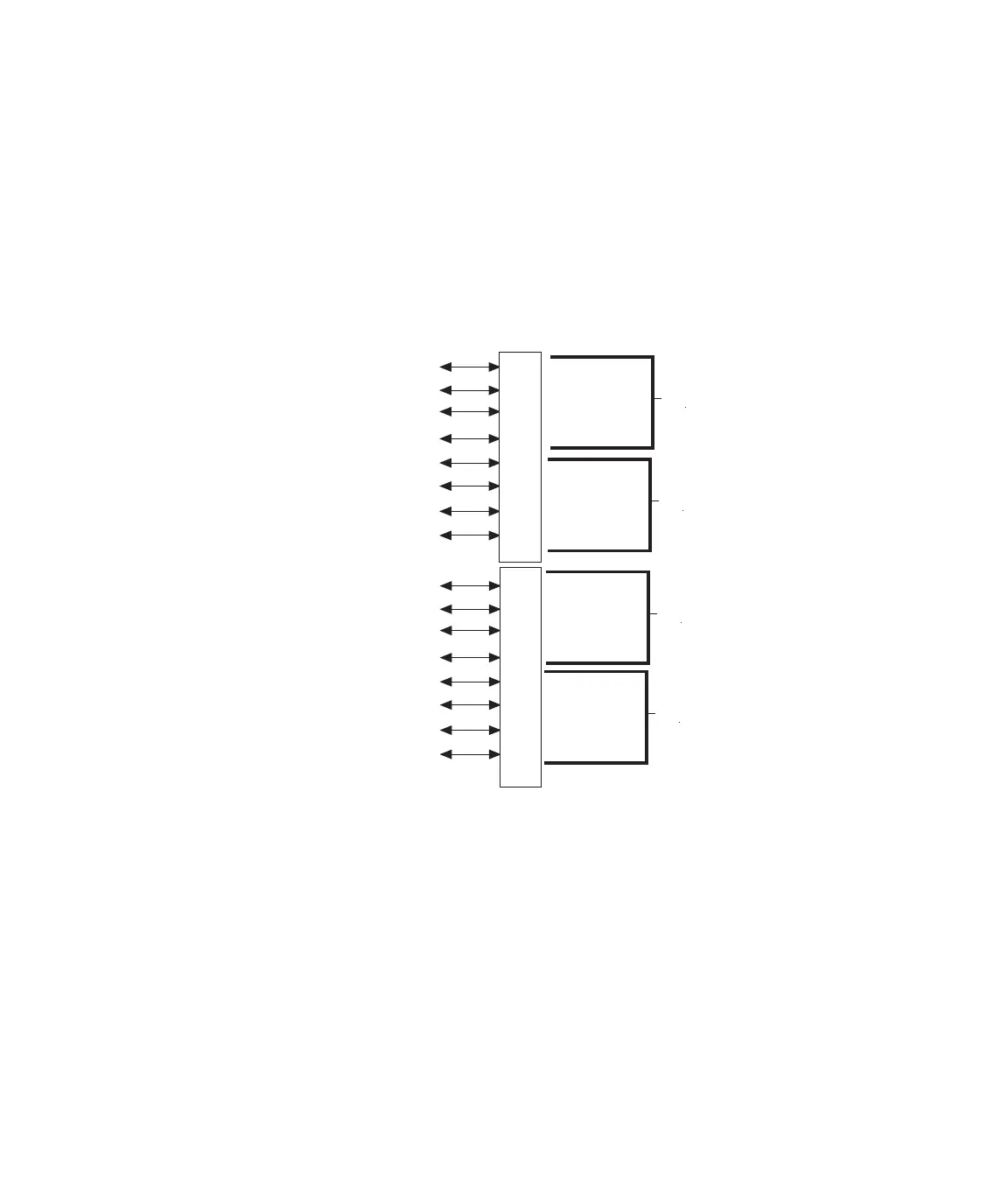

ADDA II Universal
Encoder Connections
Each encoder requires a Model 493.59 Universal Encoder mezzanine
card installed on the Model 493.50 ADDA II module.
Up to sixteen encoders can be connected to the Model 493.80 ADDA II
Encoder Transition module when the Model 493.50 ADDA II module is
fully populated with Universal Encoder cards.
J11, J13
J15, J17
J12, J14
J16, J18
Input 4
Return Gnd
Index Ser Clk
B/Interrogate
A/Serial Data
Input 3
Return Gnd
Index Ser Clk
B/Interrogate
A/Serial Data
Input 2
Return Gnd
Index Ser Clk
B/Interrogate
A/Serial Data
Input 1
Return Gnd
Index Ser Clk
B/Interrogate
A/Serial Data
To/From
E
ncoder Transition
Module
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
