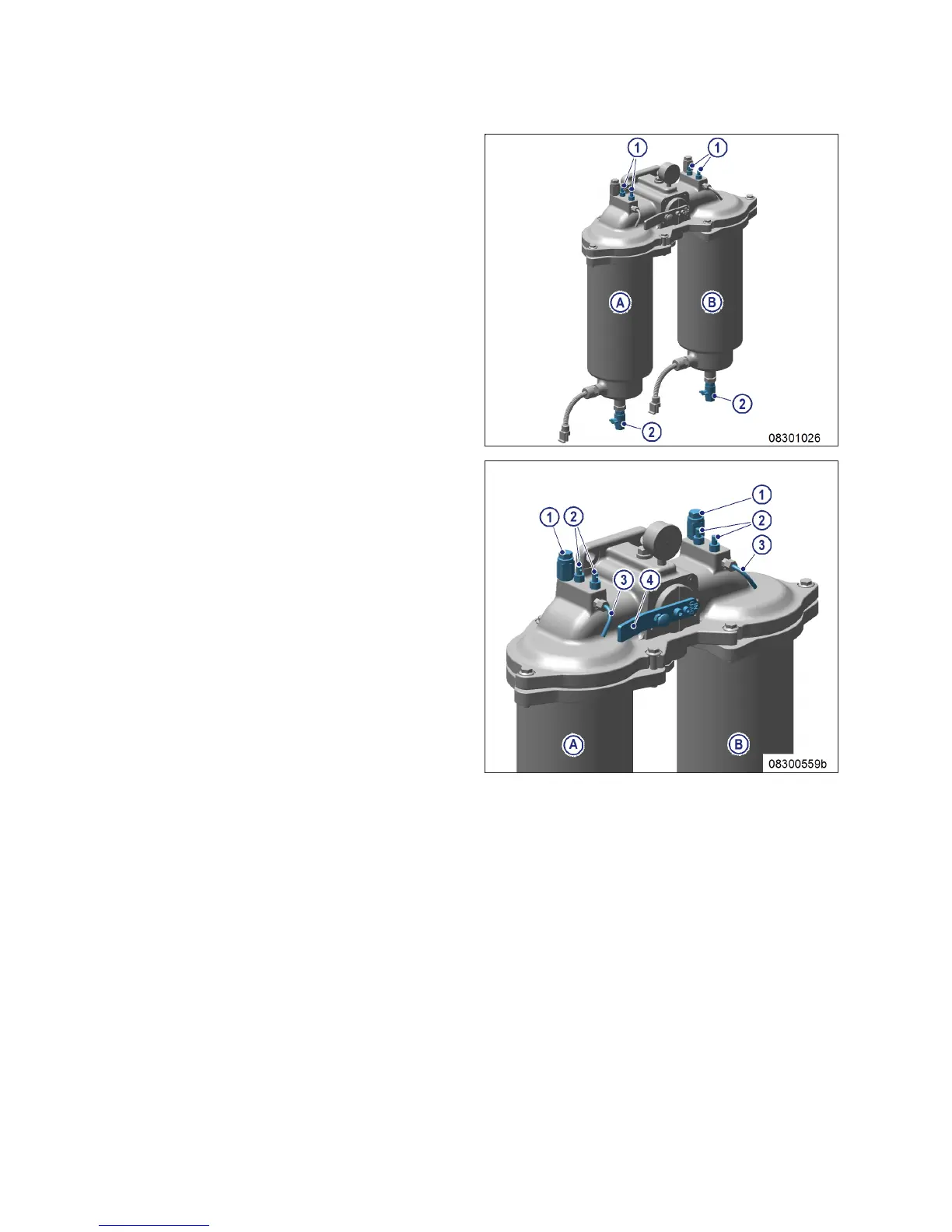

2. Open threaded vent plug (1) of the filter to
be drained.
3. Open drain valve (2).
4. Drain water and contaminants from the fil-
ter until pure fuel emerges.
5. Close drain valve (2).
6. Connect filling pump to filling connec-
tion (1) on the intake side of the filter.
7. Open vent valve (2) and fill with fuel until
fuel emerges from the vent pipe (3).
8. Close vent valve (2).
9. Open rotary slide valve (4) a little (by ap-
prox. 30°) and open vent valve(s) (2), until
fuel emerges from the vent pipe (3).
10. Close vent valve(s) (2).
11. Turn rotary slide valve (4) back to locked
position.
