2.5 Sensors and actuators – Overview

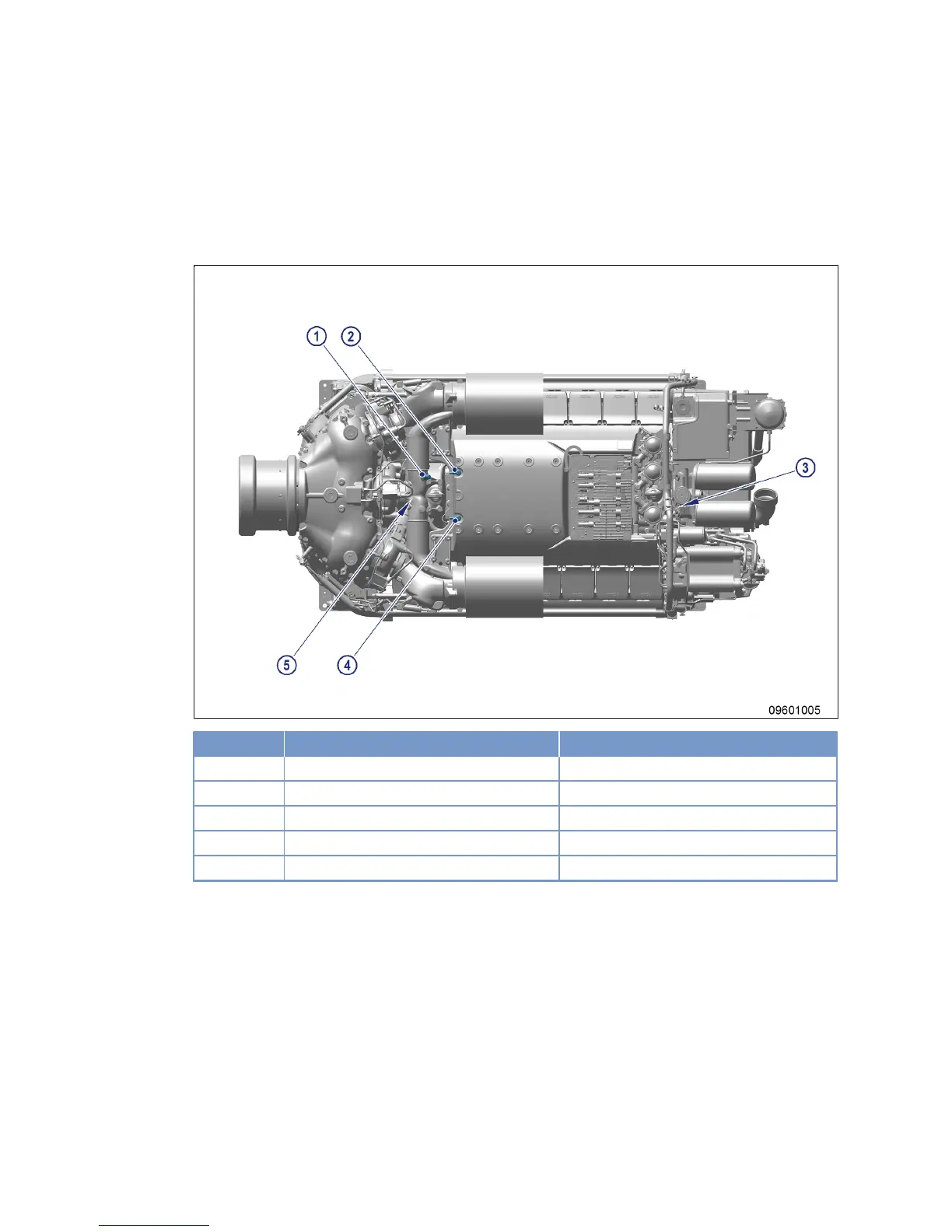

Engine plan view
Deviations from illustrations are insignificant.
Also applies similarly to 12V.
Item Designation
Monitoring of
1 B3 Intake air temperature
2 B9 Charge-air temperature
3 B7 Lube oil temperature
4 B10 Charge-air pressure
5 B44 Turbocharger speed
