7.11 Air Intake
7.11.1 Service indicator – Signal ring position check
Preconditions
☑Engine is stopped and starting disabled.
Checking signal ring position

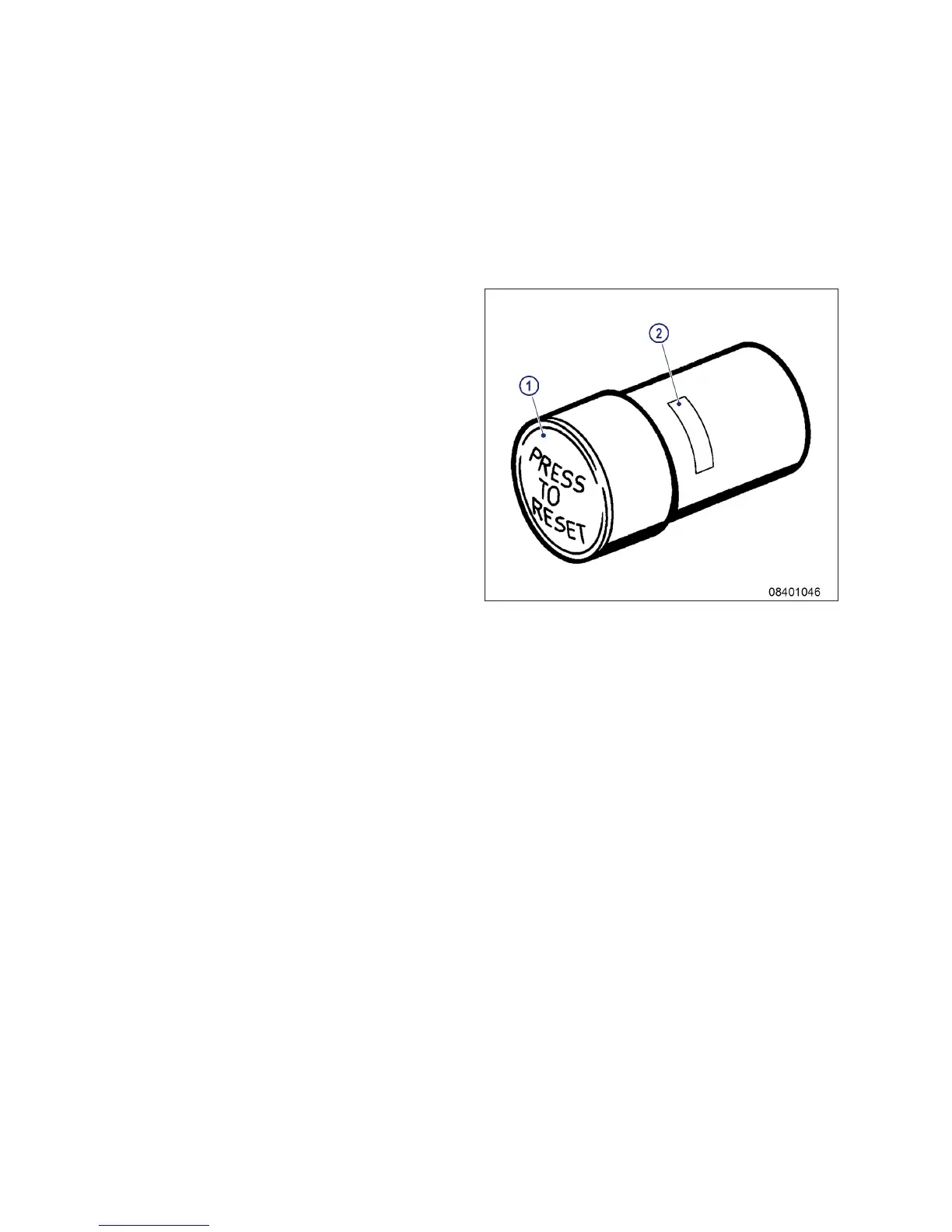

1. If the signal ring is completely visible in the
control window (2), replace air filter
(→ Page 106).
2. After installation of new filter, press reset
button (1).
Result: Engaged piston with signal ring moves
back to initial position.
108 | Task Description | M015655/05E 2015-06
TIM-ID: 0000005484 - 009
