MTU 12V2000M93 - Injector - Removal and Installation

7.6.2 Injector – Removal and installation
Preconditions
☑Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Socket wrench
0005896803/00 1
Puller
F6790629 1
Double-head box wrench
F30011450 1
Open-end wrench bit
F30025897 1
Box wrench
F30451199 1
Alignment device
F6790507 1
Assembly compound (Kluthe Hakuform 30-15)
X00067260 1
Engine oil
WARNING
Fuels are combustible and explosive.
Risk of fire and explosion!
• Avoid open flames, electrical sparks and ignition sources.
• Do not smoke.
• Wear protective clothing, protective gloves, and safety glasses / facial protection.
Preparatory steps
1. Close off fuel supply to engine.
2. Remove cylinder head cover (→ Page 91).

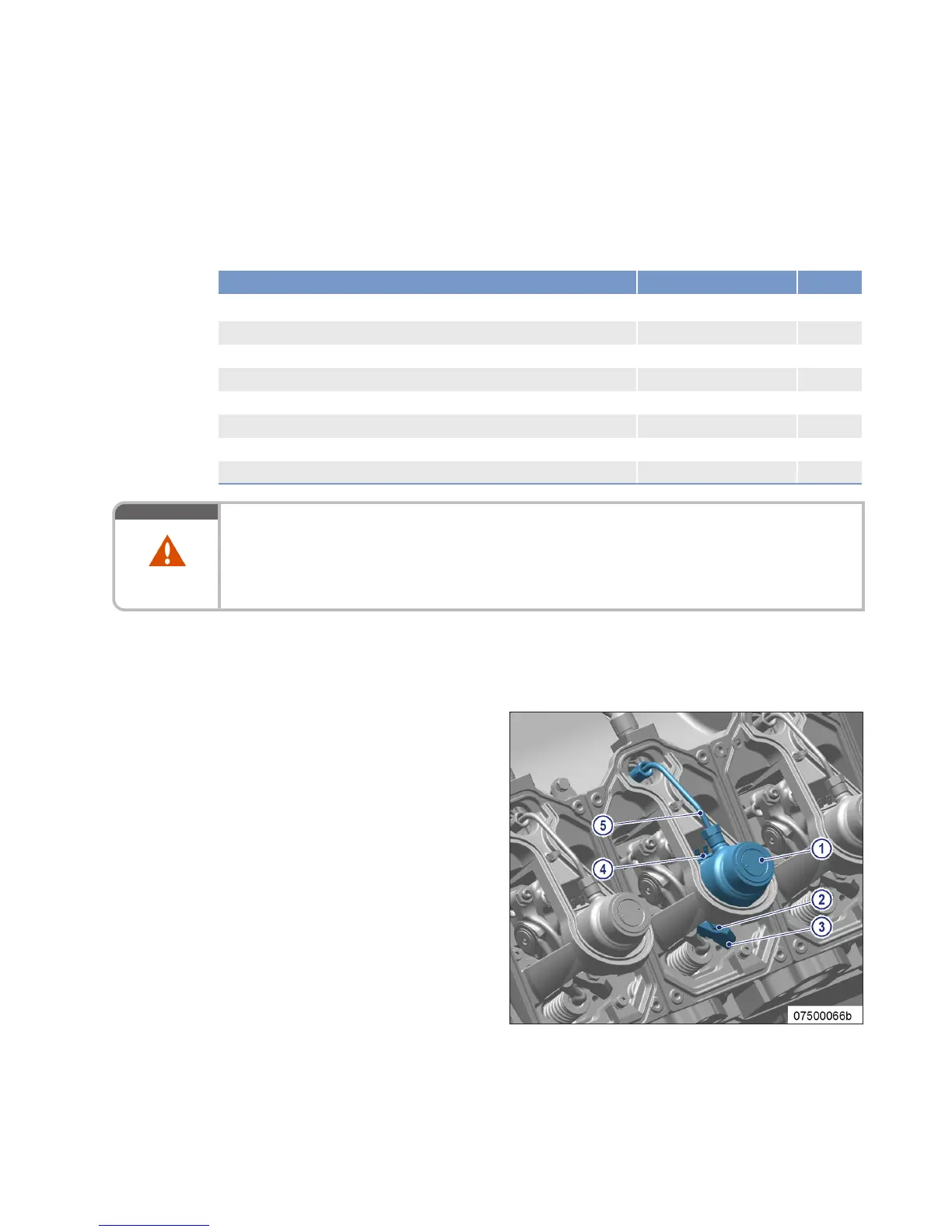

Remove injector
1. Remove HP line (5) using socket wrench.
2. Disconnect cable (4) at injector.
3. Remove screw (2).
4. Take off hold-down clamp (3).
5. Remove injector (1) with puller.
6. Remove O-rings from injector.
7. Mask all connections and bores or seal
with suitable plugs.
M015655/05E 2015-06 | Task Description | 93
TIM-ID: 0000004650 - 004
