7.21.9 Engine Interface Module EIM – Removal and installation
Preconditions
☑Engine is stopped and starting disabled.
Removing EIM from the engine
1. Note or mark assignment of cables and
connectors.

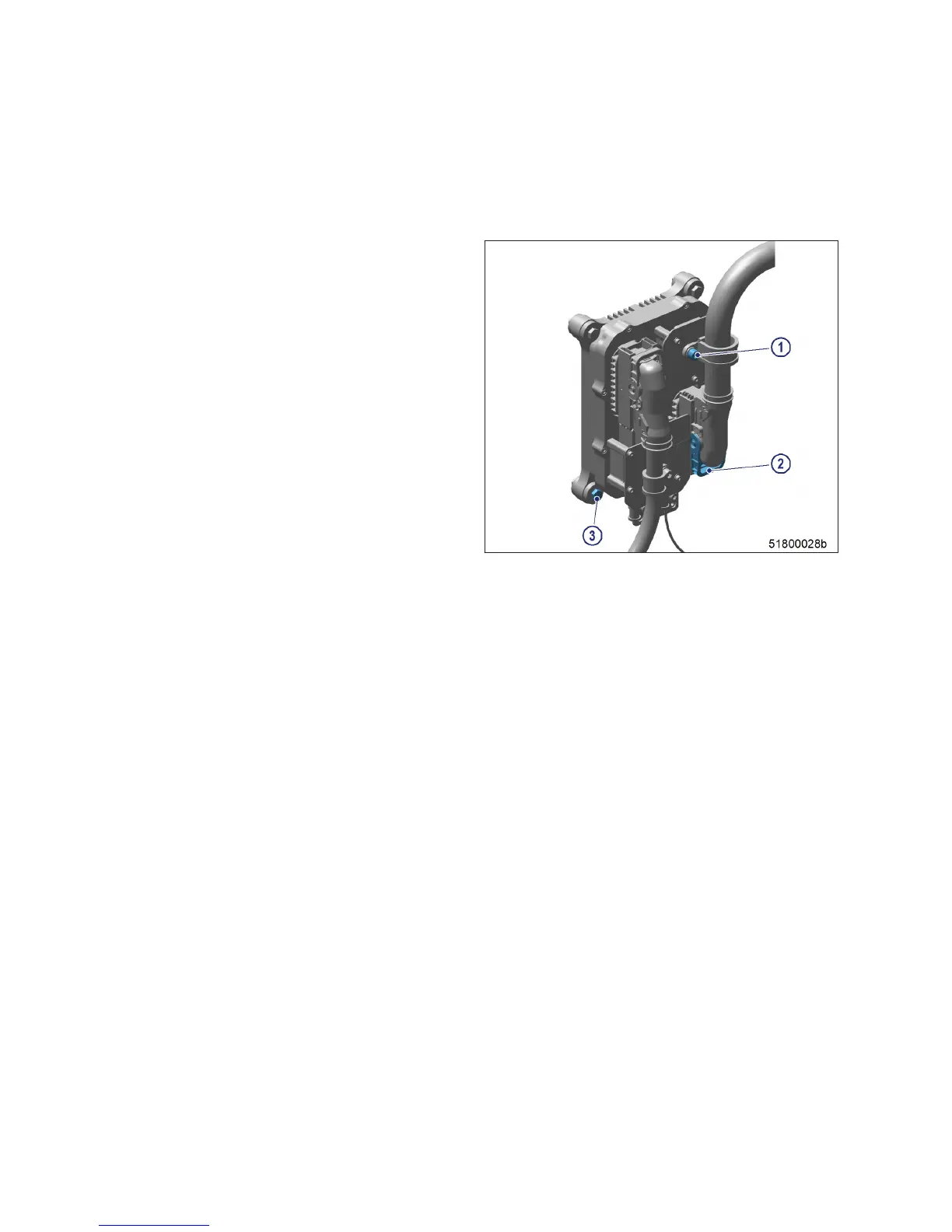

2. Unscrew all screws (1).
3. Undo clips (2) on connectors.
4. Disconnect all connectors.
5. Unscrew power and starter cable.
6. Remove screws (3).
7. Take off EIM.
Installing EIM on the engine
1. Install in reverse order. When doing so, observe correct assignment between cables and plugs.
2. Check seal before installing.
Result: Replace seal if porous or defective.
Downloading software
1. The new EIM still does not have appropriate FSW and parameter/descriptor module (the diagnostic
lamp (DILA) indicates flashing code 4 when the power supply is connected, (→ Page 147)).
2. The FSW and the parameter/descriptor module must first be downloaded from the central database
(CDB) based on the relevant engine number using the DiaSys software tool, and then loaded in the EIM.
146 | Task Description | M015655/05E 2015-06
TIM-ID: 0000017035 - 005
