Thread
Not torsion-protected M
A
(Nm)
Torsion-protected M
A
(Nm)
M20 x 1.5 430 495
M22 500 620
M22 x 1.5 560 675
M24 640 790
M24 x 2 700 850
M27 900 1170
M27 x 2 1000 1230
M30 1250 1575
*Protect screw shaft from torsion when tightening.
M
A
= tightening torques

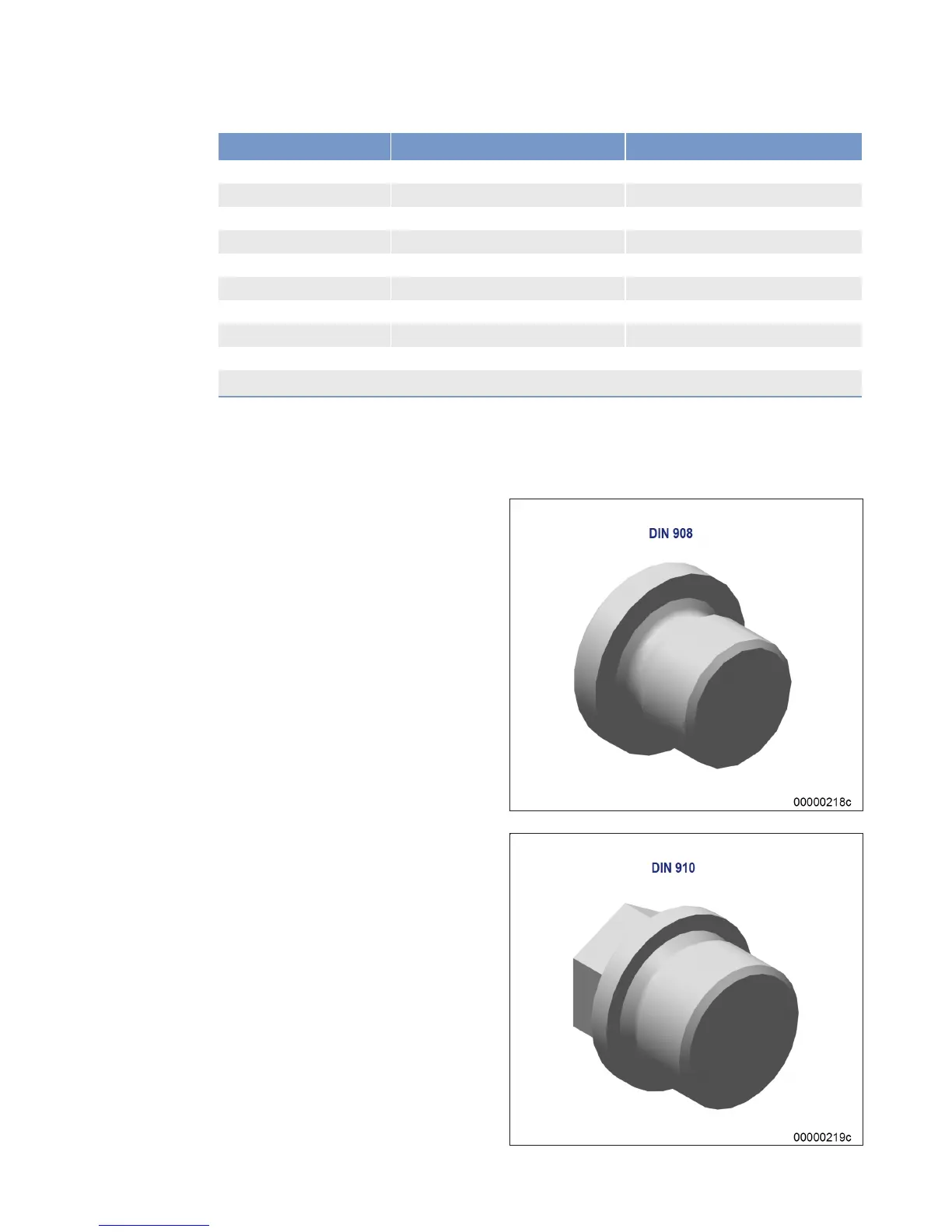

Tightening torques for plug screws to MTN 5183-1 standard
This standard applies to plug screws to DIN 908, DIN 910 and DIN 7604 with threaded end to DIN 3852
Form A (sealed with sealing ring to DIN 7603-Cu).
M015655/05E 2015-06 | General Information | 21
TIM-ID: 0000002333 - 017
