Thread
Screwed into
Steel/gray cast iron M
A
(Nm)
AI alloy M
A
(Nm)
M64 x 2 400 400
M
A
= tightening torques
Tightening torques for plug screws to DIN 7604C (with long threaded end)
Thread
Screwed into
Steel/gray cast iron M
A
(Nm)
Al alloy M
A
(Nm)
M8 x 1 10 10
M22 x 1.5 80 65
M26 x 1.5 105 90
M30 x 1.5 130 130
M38 x 1.5 140 120
M45 x 1.5 160 140
M
A
= tightening torques
Tightening torques for banjo screws to MTN 5183-2 standard

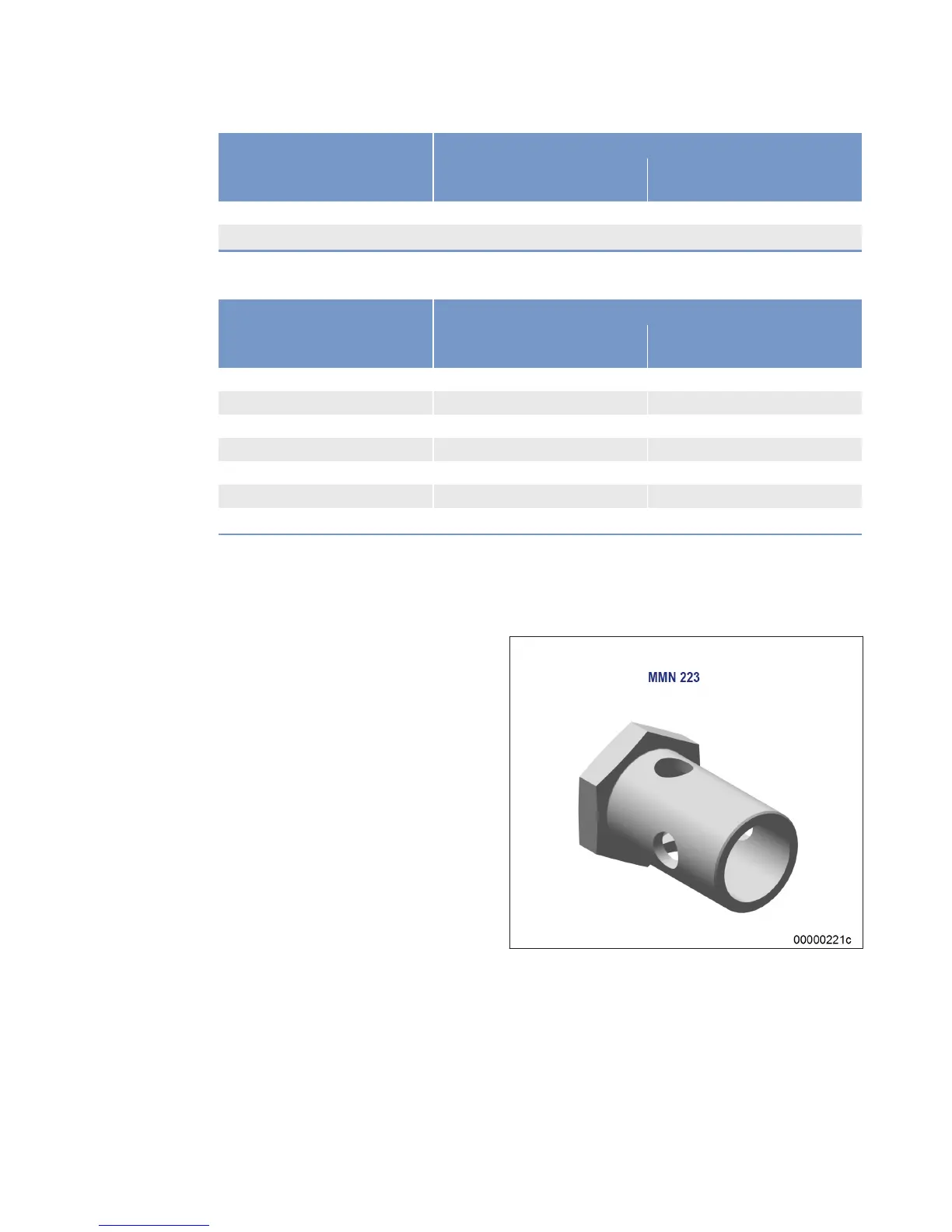

This standard applies to banjo screws to MMN 223 and N 15011 sealed with sealing ring to DIN 7603-
Cu.
