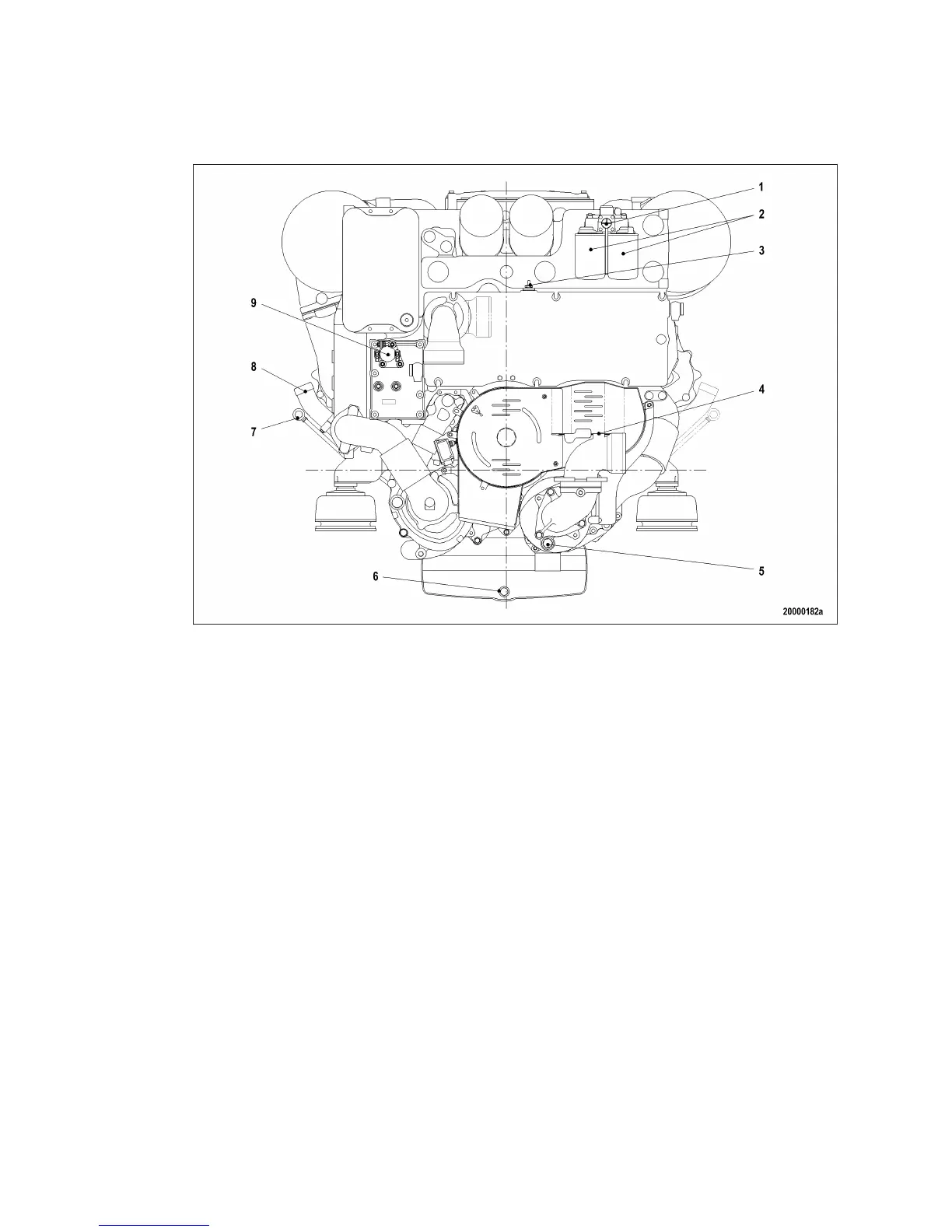

Free end (KGS)
1 Three-way cock
2 Fuel filter
3 Fuel vent valve
4 Raw water pump filling
plug
5 Raw water pump drain
plug
6 Connection for oil extrac‐
tion
7 Oil dipstick (connection
left or right engine side
optional)
8 Oil filler neck (connection
left or right engine side
optional)
9 Fuel priming pump
218 | Task Description | MW15550/06E 2012-02
TIM-ID: 0000006697 - 002
